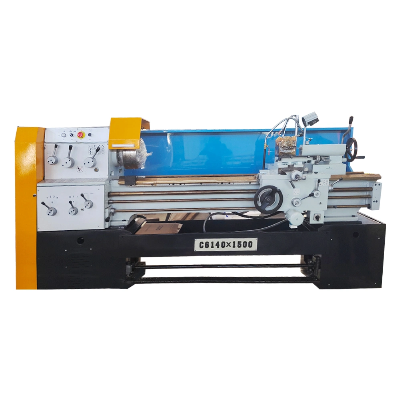

Light Duty Horizontal Meta Manual Bench Lathe Machine C6140

Light Duty Horizontal Meta Manual Bench Lathe Machine C6140The main performance characteristics:1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine toundergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenchingdepth up to 4mm, effectively improves the abradability and stability of the machine.3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hotweather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearingand gear's service life.4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precisiongrinding, can effectively improve the hardness of the gears, to reduce noise of the machine.5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee thewear-resisting property and the precision maintenance.6 The machine adopts high strength four station turret shank size: 25x25mm.Application:1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and otherrotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull thedrilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and discparts.2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequencyquenching, wear-resistant durable.3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation,humanization.4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the powerutilization rate is high, which is suitable for the strong cutting.5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and themachine tool is tested to ensure that the machine tool has good stability and reliability. Technical parameter                      Specifications                           CA6140 CA6140B                                 CA6240 CA6240B                Max. Swing over bed400mm400mmMax. Swing over carriage210mm210mmMax. swing in gap_630mmEffective gap length_210mmMax. length of work piece750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mmWidth of bed400mm400mmSection of turning tool25x25mm25x25mmSpindle speeds10-1400rpm/16-1400rpm(24steps)10-1400rpm/16-1400rpm(24steps)Hole through spindle52mm. (80mm)52mm. (80mm)Spindle taperNO.6(Φ90 1:20)[Φ113 1:20]NO.6(Φ90 1:20)[Φ113 1:20]Number of feeds64 kinds(for each)64 kinds(for each)Range of metric threads(kinds)(1-192mm)44kinds(1-192mm)44kindsRange of inch threads(kinds)(2-24tpi)21kinds(2-24tpi)21kindsRange of module threads(kinds)0.25-48 (Moduie39kinds)0.25-48 (Moduie39kinds)Range of pitch threads(kinds)1-96DP(37kinds)1-96DP(37kinds)Max. tail stock spindle travel150mm150mmTail stock spindle diameter75mm75mmTaper of tail stock spindle center holeNO.5NO.5  View More Products,click here....../* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
