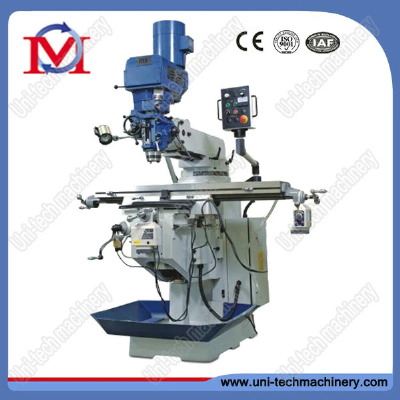

High Precision Universal Turret Milling Machine (X6325D)

High precision universal turret milling machine(X6325D)Main features:1.This bed type vertical milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.2.Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.3.The milling head moves upwards and down wards along the column, the worktable can carry heavy load.The miller can make high precision which is suitable to process high-duty cutting.4.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life. 5.Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.6.Our universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.7.Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.Machine details of Universal Turret Milling Machine:X6323A1.Double 55° swallowtail guide way is adopted on both Y,Z-axis, so it is easy to adjust and repair.2.Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.   X6323B1. 55° swallowtail guide way is adopted on Z-axis, and rectangular guide way on Y-axis.2. Adopted strengthen rib on both sides of the column, that makes the machine rigidly and beautiful.   X63251. Rectangular guideway on Y and Z-axis is featured a good rigidity and stability.2. The guideway on saddle is lined with TF wear.   X6325B1. Rectangular guideway on Y-axis and 55°swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust.2. The guideway on saddle is lined with TF wearable material.   X6325C1. Fixed structure is used to connect the mill head without ram, which makes the cut intensity will.2. Rectangular guideway on Y-axis and 55°swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust.3.      The guideway on saddle is lined with TF wearable material.   X6325D1. Rectangular guideway on Z-axis is featured a good rigidity and stability.2. The guideway on saddle is lined with TF wearable material.   XU63251. Rectangular guideway on Y and Z-axis is featured a good rigidity and stability.2. X,Y axis motor 250w. Feed rate: 15, 23, 33, 48, 78, 114, 166, 257(8kinds).X6330A1. Fixed structure is used to connect the mill head without ram, which makes the cut intensity well.2. Rectangular guideway on Z-axis is featured a good rigidity and stability.3. The guideway on saddle is lined with TF wearable material.   X63331. Rectangular guideway on Z-axis is featured a good rigidity and stability.2. The guideway on saddle is lined with TF wearable material.Production of Universal Turret Milling Machine:Universal Turret Milling Machines in workshop and stock:  MODELX6323AX6325X6333X6330ATable size230*1067(9*42) 230*1246(9*49)254*1270(10*50)330*1370(13*54)305*1370(12*54)254*1370(10*54)330*1500(13*60)305*1500(12*60)Long travel(mm)650 840850 950840 1000870 1000Cross travel(mm)305420368380Vertical travel(mm)400420450430T-slot No.and size(mm)3*16Ram travel(mm)312470500500Distance from spindle nose to table surface(mm)0-4150-4050-4500-350Spindle hole taperStandard:R8Standard:R8standard:ISO40standard:ISO40Optional:ISO30/ISO40Optional:ISO30/ISO40Spindle travel(mm)127Spindle speed(r.p.m)standard: shift grade 16: 50HZ65-4500,60HZ80-5440standard:50HZ:65-4500,60HZ:80-3750optional:variable:65-4500optional:variable:65-4500optional:variable:65-3750optional:variable:65-3750Auto.quill feedThree steps:0.04(0.0015)/0.08(0.003)/0.15(0.006'')mm/revolutionSpindle motor2.25kw/3hp2.25kw/3hp3.75kw/5hp3.75kw/5hpHead swivel90°Head tilting45°Dimension of packageOne miller per case1400*1476*20301516*1550*20801800*2016*21801566*1650*2080Two miller per case1450*1570*20801650*1790*21701800*2200*21801720*1800*2175Three miller per case1450*2180*20801650*2285*2235  G.W/set1100155023001750/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
