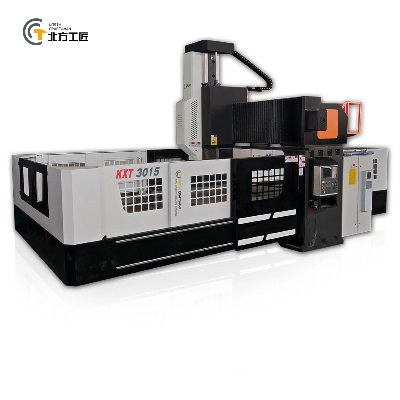

Gantry vertical horizontal machining center Gantry type CNC milling machine CNC Gantry milling machine Vertical Gantry Machining Center Double Column Machining Center Gantry milling machine Gantry Machining Center 5 axis machining center cnc The machine is widely suitable for general machinery, automobilem, aerospace, printing and packing, textile machinery, metallurgy, petrochemical, locomotive box line, mold and other large and medium-sized machinery parts processing and mould manufacturing, one-time can complete the rest of the five other than the mounting surface coarse, half finishing and finishing requirement, can finish milling, drilling, tapping, boring, reaming, and other process. Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway;high-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting. Device parameters ModelUnitKXT1515KXT2016KXT3015KXT3020KXT4020KXT4025X axismm150021003200320042004200Y axismm150018001600200022002800Z axismm60080080080011001100Gantry spanmm150016001600200020002500Distance from spindle nose to tablemm150-750150-950150-1250Table Sizemm1200*15002000*12501200*30001600*30001600*40002200*4000Table LoadKg30005000500080001000015000T- Slot (Width x Number x Pitch)mm22*5*16022*5*25022.5*7*25022*7*20022*7*22022*9*220Spindle Speedrpm3,000(6,000-opt.)Spindle Taper-BT-50 / ISO-50 / CAT-50Spindle motor powerKw11/1515/18.515/18.5/2218.5/2218.5/2218.5/22Spindle motor torqueN.m72/989898/117/140117/140Rapid Traverse(X/Y/Z)m/min10/10/76/10/7Servo motor power(X/Y/Z)Kw5.1/3.6/4.75.2/3.6/4.75.5/4.7/5.17.5/4.7/5.57.5/4.7/5.57.5/5.5/5.5Servo motor torque(X/Y/Z)N.m27/18/2328/18/2332/23/2736/23/2736/23/2736/27/27Servo motor speed(X/Y/Z)rpm2000Ball screw diameter(X/Y/Z)mm50/50/5063/50/5080/50/5080/63/50Cutting feedratemm/min6000Minimum step equivalentmm0.001 Standard AccessoriesOptional1KND/SYNTEC CNC systemFANUC/SIEMENS CNC system2Direct-connected spindle speed is 3000rpmGear-type spindle speed is 6000rpm3Both sides of screw chip removal deviceBelt-type spindle speed is 6000rpm4Spindle with two-stage speed change boxDisc-type tool magazine5Electric tank with air conditionChain-type tool magazine6Air filtration purification deviceVertical and Horizontal tool magazine7Spindle oil coolerCNC rotary table8Cooling deviceGrating scale9Hydraulic systemWater gun10Air gunAccessory head grabbed automatically11Machine protection shieldAttachment head loss prevention system12Linghting systemFully-auto. 90 degree milling head13Three color light alarmSemi-auto. 90 degree milling head14Cutting blowManual 90 degree milling head15Communication interfaceExtended milling head16Handheld electronic hand wheelSide milling head17Tools and tool boxFlat right-angle milling head18Horizontal adjustment bolts and shimColumn heightening19Technical documentsZ-axis travel is 1250mm/1500mm About Us Certificate display Visiting customers Packaging & Shipping FAQ 1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year. 2. Can we pay by L/C or others ? Yes ,you can make the payment by T/T , l/C etc. 3. What is your payment terms ? 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4.When is the delivery time? The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. How to handle the warranty period? During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost. 6.Can your company send the technical personnel to our company and direct our workers for free? When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD50.00-100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?
