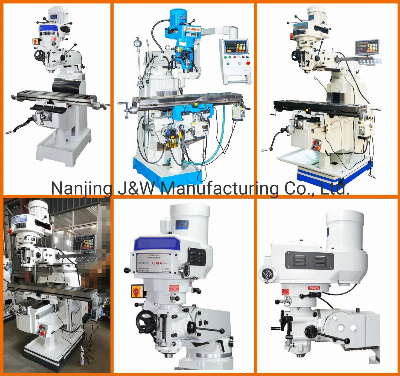

Turret Milling Machine Miller Mill Machine (X6323 X6325)

Specifications:X6323AX6323BX6325AX6325BX6325Working surface--inch              --mm9"x49"9"x49"10"x50" (Optional:10"x54")228x1245228x1245254x1270 (Optional:254x1370)Longitudinal travel---manual (mm)700700850 (1270):900(1370)Longitudinal travel---fixed power feed (mm)660660750 (1270):900(1370)Cross travel---manual (mm)300300380380400Vertical travel (mm)320320380380400Distance from spindle end to table surface (mm)38~35838~35845~42545~42545~445Distance from spindle center to column (mm)177~387177~387140~610Spindle taperR8:(Option:NT30,NT40)Spindle travel (mm)127Spindle speed range16 stepsSpindle feed (mm)0.076/0.003" 0.038/0.0015" 0.203/0.008"Spindle quill dia. (mm)∮85.7Min. Speed (r/min)66~4540 (50Hz)Max. Speed (r/min)80~5440 (60Hz)Swivel angle of milling head90°Tilting angle of milling head±45°Slot No. & width (mm)3*16Main motor (kw)2.2Coolant motor (kw)0.04Max. load of table (kg)200200300N.W. (kg)10001000110011501250:Means dovetail guideway:Means Rectangular guidewayStandard accessories:Supersonic frequency quenching on guidewayGrinding for T slot of worktableDraw barElectric cabinetRubber chip coverWorking lampManual lubricationTools and tool boxOptional accessories:ItemSpecificationsRemark3HP stepless spindle speedSpindle R8, sleeve diameter 86mmPrice differences for standard spindle upgradation3HP NT30 spindleSpindle NT 30, sleeve diameter 86mm3HP NT40 spindleSpindle NT 40, sleeve diameter 86mm5HP 16 spindle speed Spindle NT40, sleeve diameter of 105mm5HP stepless spindle speedSpindle NT40, sleeve diameter of 105mmExpansion for worktable10"x58" (254x1370mm) The SINO digitalreadout2 axis 3 axisALSGS power feederX axis Y axisLifting motor  Flat vice6", with rotary baseQM16160Clamping kitM12, 52pcs Spindle colletR8: 3,4,6,8,10,12,14,16,18,20mm 8-piece milling clip set (including tool holder, wrench and 8 spring collet) 15-piece milling clip set (including tool holder, wrench and 15 spring collet) Cooling with water pan  Spindle cover  Steel shape centralized control24V control, large electrical cabinet, with open door power Aluminum alloy shape centralized control24V control, large electrical cabinet, with open door power Auto lubricating    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
