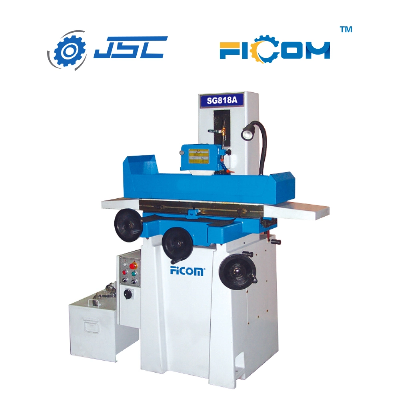

High Precision Surface Grinder Sg818A

Product DescriptionDouble V type guidewaysVertical handwheel is fixed on bedManual oil pump lubricates all moveable partsDetailed Photos Technical Parameters  Model No. UnitSG818AMax. width to be ground mm220Max. length to be ground mm470Max. height to be groundmm350 Work table sizemm210x450Permanent magnetic chuck sizemm200x450 Max. longitudinal travelmm500Max. cross travel mm240Max. distance from spindle to table surfacemm450Feed of vertical handwheel    1per rev.Grinding wheel size(ODxWxlD) mm200x13x31.75Spindle speedr/min3450(60Hz)2850(50Hz) Power of spindle head kw1.5Max. load capacitykg128Packing sizer/min1400x1120x1985N.W.kg800Standard Accessorieswheelbalancing arborhoisting setspannerwheel chuckwheel dresserlevelling screw and blocktool box and special wrenchhalogen lampcoolant system  Optional Accessoriespermanent magnetic chuckdust collectorwheel balancing standcooling and dust collectingequipment  Company Profile   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
