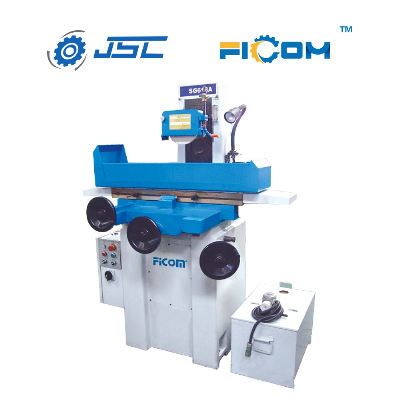

High Precision Surface Grinder Sg618A

Product DescriptionWidely useful,grind various surfaceSpindle and leadscrew is importedRolling ball guideway is used on longitudinal directionDetailed Photos Technical Parameters  Model No. UnitSG618AMax. width to be ground mm165Max. length to be ground mm470Max. height to be groundmm350 Work table sizemm155x460Permanent magnetic chuck sizemm150x400 Max. longitudinal travelmm500Max. cross travel mm185 Max. distance from spindle to table surfacemm450Feed of vertical handwheel    1per rev.Grinding wheel size(ODxWxlD) mm200x13x31.75Spindle speedr/min3450(60Hz)2850(50Hz) Power of spindle head kw1.5 Max. load capacitykg97 Packing sizer/min1340x1120x1930 N.W.kg720Standard Accessorieswheelbalancing arborhoisting setspannerwheel chuckwheel dresserlevelling screw and blocktool box and special wrenchhalogen lampcoolant system  Optional Accessoriespermanent magnetic chuckdust collectorwheel balancing standcooling and dust collectingequipment  Company Profile   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
