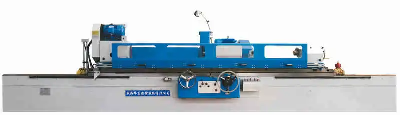

M1350 Cylindrical Grinding Machine

1.Machine structureI.The wheel transverse feed is driven by hydraulic pressure to realize micro automatic periodic feed and rapid movment,it can also do manually rough or fine feed.II.M1350/M1363 series table and wheelhead guideway adopt static guideway,low speed movement is stable.III.M1350/M1363 series wheelhead adopt high rigid dynamic and static spindle,high rotary precision,good rigidity.IV.the workhead can realize variable speed  with inventor.it can be adjusted at any angle within 90 degrees counterclockwise to adopt to do the external and internal grinding of conical workpiece.2.Our advantages1.Factory direct sales, product quality ,delivery time and after-sale services can be effectively guaranteed2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them3.ParametersspecificationsUnitmodelM1332M1332HM1350M1363MQ1380AMax.length grinding(O.D)mm1000/15002000/30001500/2000/3000/40002000/3000/4000/50003000/4000/5000center heightmm180180270370500Dia. grinding(O.D)mm8~3208~32025~50030~63050~800Max.weight of workpiecekg150500 200030003000workhead swiveling angledegree+90+90+90+90+90center taperMT556metric 80#metric 80#spindle speed(stepless)r/min50HZ 26-19050HZ 26-19050HZ 10-10050HZ 6-6050HZ 5-50wheelhead      Max.dimension of wheel(O.D*W*ID)mm600*75*305600*75*305750*75*305750*75*305900*75*305wheel peripheral velocitym/s3535353535hand feed per.revolutionmmrough 2rough 2Rough 4Rough 4Rough 4Fine:0.5Fine 0.5Fine 0.5Fine 0.5Fine0.5hand feed per. graduationmmrough 0.01rough 0.01rough 0.02rough 0.02rough 0.02fine 0.0025fine 0.0025fine 0.0025fine 0.0025fine 0.0025worktable Max.swiveling angle of worktable clockwisedegree333/2/2/12/1/1/11Max.swiveling angle of worktable anticlockwisedegree7/65/36/5/3/24/3/2/1.53/2/1.5longitudinal speed range of worktablemm/min0.1-40.1-40.1-30.1-2.50.1-2.5tailstock center taperMT456metric 80#metric 80#Quill travelmm3030707070Motor wheel head motor powerKW1111152222workhead motor powerKW1.52.241515machining accuracy roundnessμm353/5/5/555cylindricityμm8108/10/10/1510/10/15/1510/15/15roughnessμmRa0.2Ra0.32Ra0.32Ra0.32Ra0.32machine weightt4.6/5.15.7/7.110/11/13/1718/22/23/2622/23/26package sizecm326*203*205(1000)530*190*205(2000)543*225*210(1500)720*228*226(2000)876*240*230(3000)426*203*205(1500)730*190*205(3000)583*225*210(2000)876*228*226(3000)1100*240*230(4000)  796*225*210(3000)1100*229*226(4000)1270*240*230(5000)  996*225*210(4000)1270*240*226(5000) 4.Standard accessoires5.Optional accessories6.Workshop--show that we are large proffesional manufacurer7. Machine packing --Serious, meticulous, professional, to ensure that each machine  and parts are firmly fixed on the packaging tray8. Company honors9. International exhibitions10.After-sale services--Let you have no worries1. The warranty is14 months after machine out of our company.During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.2. After the warranty period, lifelong paid maintenance and service will be provided.Technical support forever.3. Provide spare parts and spare parts at preferential prices forever.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
