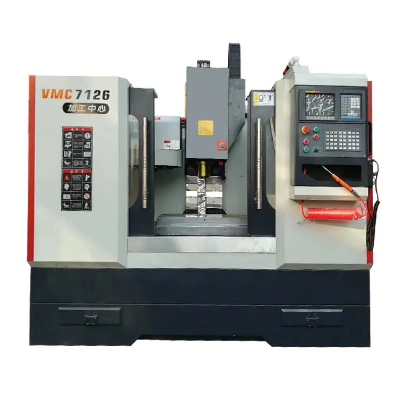

High Accuracy 3 Axis Milling Machine Vmc7126 CNC Machining Center

Application:This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.ProjectContentUnitparameterTravelLeft and right travel: (X)mm500 Front and rear trip (Y)mm320 Up and down trip (Z)mm450 Main dle head to work surfacemm70-480stagingWorking table is longmm800 Working table widemm260 Workbench bearingKg200T groovespecificationsmm3-16 centre-to-centre spacingmm80principal axistaper BT40 Distance from the spindle center to the guide rail surfacemm380 main shaft speedrpm8000 Maximum rated powerKw3.7 driving system locking-in range on synchronizationaccuracypositioning accuracymm±0.015 repeatability precisionmm±0.008Axial motorpower X/Y/ZN6 / 6 / 10 (10 with brakes)feed rateX / Y / Z maximum fast shift speedm/min18/18/18  FAQ1:How can I choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you.2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and soon.3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
