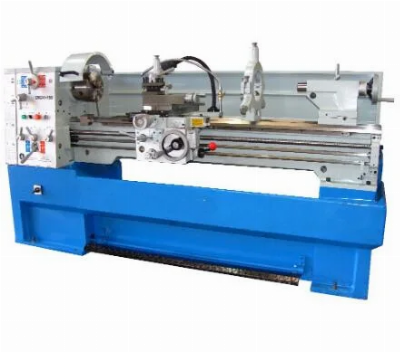

Features:Super voice frequency heated bed ways. Hardened and grounded gears in the headstock. With 2 precision D degree taper roller bearings on the spindle. Integrated deluxe cast iron floor stand. Tolerance test certificate, test flow chart included. Main specification :ModelCM6241×1000CM6241×1500Max.swing over bedΦ410mmMax.swing over cross slideΦ255mmMax. swing over gapΦ580mmMax.length of workpiece1000mm/1500mmLength of gap250mmMax.section of tool20mm×20mmMax.travel of cross slide210mmMax.travel of compound rest140mmWidth of bed250mmSpindle bore52mmSpindle noseD1-6Taper of spindle boreM.T.#6Range of spindle speed16 changes 45-1800r/minInch threads range45kinds 2-72 T.P.I.Metric threads range39kinds 0.2-14mmModule pitches range18kinds: 0.3-3.5M.P.Diametrical pitches range21kinds:8-44D.P.Dia. of tailstock sleeve60mm(2 5/16")Travel of tailstock sleeve120mm(4 3/4")Morse taper of tailstock sleeveM.T.#4Power of main motor2.2/3.3kw(optional 3/4.5kw)Power of coolant pump4P, 3PH,90wPacking size(LxWxH)mm2070/2600x940x1600N.W./G.W.1550/1760 kg 1750/1850kgStandard accessories:3-jaw chuck,4-jaw chuck,Face plateSteady rest,Follow rest,working light,colant system,Brake system,Full length splash guard,Chasing dial indicator,Change gear set,Reduction sleeve,Dead centers,Chuck guard,Tool box and tools; Optional accessories:Taper turning attachment Live center MT3 Live center MT4 Live center MT5 Lead screw guard DRO(X/Y) DRO(X/Y/Z) Quick change tool post (American type/3pcs) Quick change tool post (American type/6pcs) Quick change tool post (European type/5pcs) Guarantee Terms:Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.Machine Details /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
