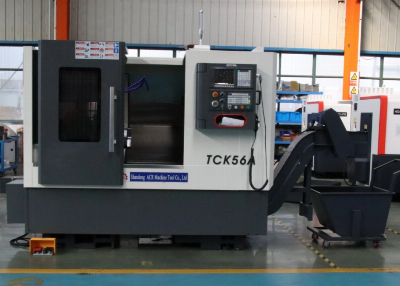

Higher Accuracy Sland Bed Tck56A CNC Lathe Machine

Product Description1. The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,ciecle arc,ciecular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobile,motorcycle,bearings and so on.2. This machine has the following features:Higher accuracy Taiwan linear guidewaysHigher speed spindle unitHigher rigidity castingsIntegrated automatic lubricationOne-piece casting bed and slant bedProduct Parameters SPECIFICATIONSUNITTCK56AMax. swing dia. over bedmm560Max. swing dia. over slidemm300Max. work piece lengthmm500/950Max. bar capacitymm50Max. processing diameter of plate type work piecemm360Spindle noseGB59001A2-6Spindle boremm65Spindle speedrpm50-3500Spindle shift mode infinite variable frequency tone speedMotor power of spindleKW11Chuck type hydraulic chuckChuck sizeinch8X/Z axis rapid traversem/minX:24  Z:24X/Z axis servo motor torqueN.mX:10  Z:10X/Z axis travelmmX:200  Z:550/1050Guide way type linear guide wayTurret type horizontal 8/12 stationTool shank sizemm25*25/Ø32Tail stock type hydraulicTail stock quill dia.mm74Tail stock quill travelmm450Tail stock quill taper MT5#Total rated powerKW18Total rated currentA38Net weightkg4250Machine dimension(L*W*H)mm2950/3450*1860*1850  Detailed Photos Company ProfileFAQ1. How can I choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you.2. What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.3. Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5. What's the Payment Terms?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .6. What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
