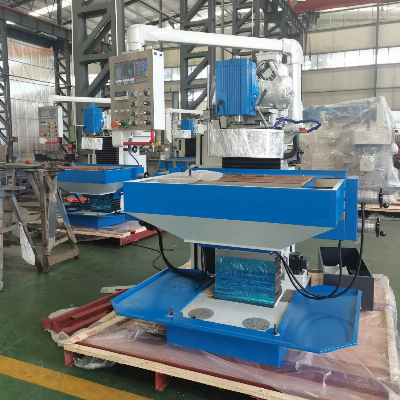

High Quality Vertical Horizontal Universal Milling Machine Um400b Tool Mill Machine

high quality vertical horizontal Universal Milling Machine Um400b Tool Mill Machine Product DescriptionΔ Spindle:√ step-less spindle speed, in high & low speed ranges, suitable for high-speed-fine-machining & low-speed-powerful-machining√ vertical & horizontal spindles combined, for flexible operation√ 60mm spindle stroke, milling and drilling functions are availableΔ Working feed:√ X/Y/Z-axis ball screws, good precision√ X/Y/Z-axis driven by 3 independent servo motors, can realize X/Y/Z-axis synchronous feeding√ servo motors for spindle and feeding, machine with low noise, good precision, easy to maintenance√ X/Y/Z-axis with electronic handwheels, for easy and precise manual-feeding√ vertical & horizontal combined work-tables, for flexible clamping of workpiece√ fitted with automatic centralized lubrication system, for automatic timing lubricationFeatures of universal tool milling machine1.Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds2.Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.3.Electronic handwheel adopted on X Y Z 3-axis ,easy operating4.Automatic oil lubrication, cooling system,Chip collector tray,CE Schneider Electric are standard.Detailed PhotosThis machine is designed to be a middle-sized Universal Tool Milling Machine, can perform procedures such as milling, boring, drilling, and slotting, etc, and is suitable for machining cutter, fixture, die and mould, and other components with complex figuration. With the aid of various special attachments, it can machine all kinds of components such as spiral, arc, gear, rack, spline, and so on.This universal tool milling machine is a versatile machine,extensively used for metal cutting manufacturer in different mechanical industries. It is particularly suitable for half-finished and precision-machined manufacturing of machine parts,which has complicated shapes. It has a great advantage for manufacturing middle and small parts to use this machine tool. Product ParametersItemsXL8132XL8140XL8145Working area  Worktable size (L×W)750x320mm800x400mm850x450mmT slot (Width x No. x pitch)14x5x63mm14x6x63mm14x7x63mmVertical table size890x225mm1020x225mm1190x250mmT slot (Width x No. x pitch) Vertical table14x3x63mmMax. load of table160kg200kg300kgTorque of feed motor (X)7.7Nm7.7Nm10NmTorque of feed motor (Y)7.7Nm7.7Nm10NmTorque of feed motor (Z)10Nm10Nm15NmSpindle axis-to-table surface distance(Horizontal)145-545mm145-545mm170-620mmSpindle nose-to-table surface distance(Vertical)50-450mm50-450mm75-525mmTravels  Longitudinal travel (X)405mm500mm600mmTransverse travel (Y)305mm 400mm 450mm Vertical travel (Z)400mm 400mm 450mm Feeds of X Y Z axis10-1000mm/minRapid feed1200mm/minSpindle  Spindle speed (V&H)2 steps; 40-260rpm, 260-2000rpmSpindle taper (V&H)NT40Vertical quill travel60mm Main motor power3.7kW3.7kW5.5kWOthers  Machine size (L×W×H)1500x1700x1800mm1500x1700x1800mm1600x1800x2000mmNet weight1450 kg1550 kg1750 kgStandard accessories:Horizontal arbor assembly Ø16,22,27,32mmReducing sleeves MT1/MT2 /MT3Milling chuck with collets(2,3,4,5,6,8,10,12mm)Draw barOuter arbor support for horizontal millingChip collector trayWork lampCoolant systemAutomatic centralized oil lubricationSchneider electric componentsTools & tool boxOperator manual  Optional accessoriesPackaging & ShippingDelivery time: generally 30-60 days production time after confirmation of orderPacking type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)Packing size: 2100 x 1900 x 2250mm (L / W / H), can be delivered in 20GP container.Company ProfileShandong XILI Machine Tool Co.,ltd. and Tengzhou XILI Machine Tool Co.,ltd. Milling machine manufacturer for more than 20 years. our main products: cnc gantry milling machine, machining center, cnc milling machine, conventional milling machine.  our machines are exported to Europe, America, Southeast Asia and other countries and regions, well received by customers.FAQ1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & manual milling machines. Include:CNC gantry machining centerVertical machining centerSimple NC milling machineConventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)5. How can I believe your company ?XILI M
