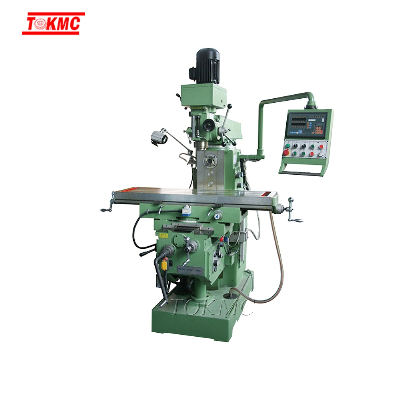

Dm50sf Three Axes Auto Feed Drilling and Milling Machine

Gear head drilling and milling machine Optional accessory :-three axes DRO -universal dividing head 200mm with tailstock   -slotting head -working area guard  -machine vise 8"   -Clamping Kit 58pcs  -rotary table ItemDM50SFSpindle taperISO40 (V),  ISO40(H)Distance from vertical spindle nose to table0-390mmDistance from horizontal spindle centerline to table0-280mmDistance from vertical spindle centerline to column465mmDistance from horizontal spindle centerline to ram bottom160mmSpindle speed range(H)12 steps, 40-1300 r.p.m(V) 8 steps, 90-2000 r.p.mSwivel angle of milling head±90°Table size1250x320mmTable travel (X,Y,Z)700/290/350 mmTable longitudinal&cross feed (X/Y)8 steps,22-555 mm/minTable vertical feed (Z)8 steps, 17-190 mm/minX,Y axis rapid feed speed1080 mm/minZ-axis rapid feed speed590 mm/minFeed motor power750wMax.loading of worktable300 kgTable T-slot (No.- width -Pitch)3/14/70 mmZ-axis guide way typeRectangular Y-axis guide way typeRectangularX-axis guide way typeDovetailMain motor power 2.2kwOverall dimensions1700x1500x2150mmN.W/ G.W kgs1550/1700kg /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
