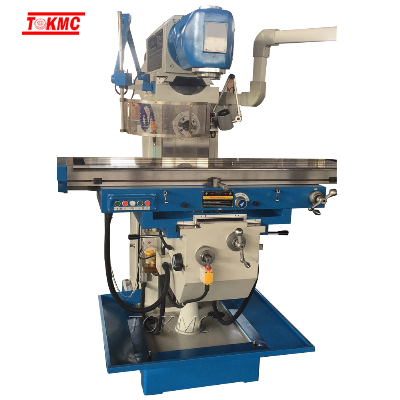

Knee type universal milling machineFEATURESLogical, clearly arranged gearshift for speed changeHardened and polished guide ways guarantees top accuracySetting of the required feed speed by potentiometer on the control panelFinely graduated feeds in all axis, driven by servo motorUniversal mill head system 'Huron' adjusts to various anglesComplete with rapid feed in x-, y- and z-axis to reduce downtimeOptimal adjustments of spindle speed and feed allow for economic machining of various materials SpecificationsUnitTUM1668STable sizemm1650×400Table travel (X/Y/Z)mm1250/450/650Table feed speed X axismm/min25~800Table feed speed Y axismm/min25~800Table feed speed Z axismm/min8~267Spindle taper 7:24 IS050 (H)7:24 IS050 (V)Arm travelmm700Distance from vertical spindle to tablemm200-850Distance from horizontal spindle to tablemm0-500Distance from spindle to armmm200Spindle speed ranger.p.m50-1520 (V)60-1850 (H)Spindle speed stepssteps12T-slots(NO./width/pitch)mm3/18/100Main motor powerKw5.5 (H) 5.5 (V)AC servo feed motor torqueN.m12Overall sizemm2245x2100x2000Net weightkg3300Standard accessories:Mill chuck setDraw barMill arborsWorktable swivel ±50 degreeReduction sleeveCoolant deviceCoolant trayAutomatic central lubricationFoundation boltsToolsOptional accessories:3-axis digital readoutMachine viceSpindle protectionHorizontal & vertical rotary tableClamping kit set 58-pcsUniversal dividing headLED machine lightArbor support for vertical milling head/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
