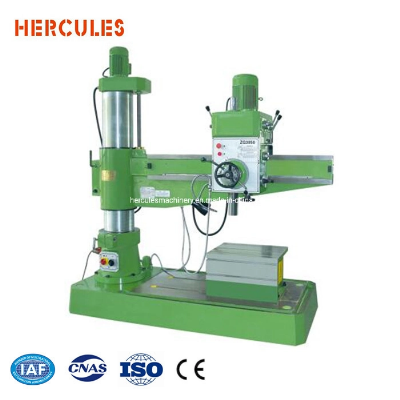

Z3040X14 Taladro Radial Drilling Press Cutting Grinding Milling Lathe machine

Advantage1. With a wide range of speed and feed, with manualpower and fine feeds. 2. The feed of machines are very easily engaged and disengaged at any time. 3. All parts are easily operated and changed. 4. High quality of casting. 5. Heat treatment for spindle parts, ensuring their high strength and durability. 6. Main gears are machined by gear grinding, ensuring the machine with high precision and low noise.   ModelZ3040x14/Z3040x11 Fladial drilling machineMax. drilling diaIron Φ40/steel Φ32Distance from spindle nose to table surface260-1150/260-1050Distance between spindle axis and column surface350-1400/ 360-1/1100Spindle travel200Spindle cone4Spindle speed range78. 130. 240.380. 660. 1200Spindle speed step6Spindle feeding range0.10-0.25Spindle feeding step3Rocker rotary angle360Main motor power2.2Movements motor power1.5/0.75N.W/G.W2200/1600Overall  dimension1800x810x2300/1500x705x2200Hercules Machinery Equipment Ltd.Standard accessories: 1. Keyless drill chuck; 2. Connecting rod;  3. Reduction sleeve; 4. Withdrawl wedge Pictures for referenceonly:   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
