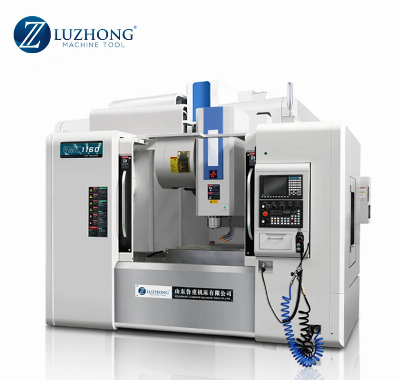

Numerical control Machining of Vertical Machining Center (VMC1165)

  Numerical control Machining of Vertical Machining Center (VMC1165)Product Description Product Parameters SPECIFICATIONSUnitsVMC1165Table sizemm1200x600X axis travelmm1100Y axis travelmm650Z axis travelmm600Max. table loadkg1000T slot(number-width*pitch) 5-18x110Max. spindle speedrpm8000(Optional:10000 )Spindle tapermmBT40Main motor powerkw11X/Y/Z rapid traverse speedm/min24/24/20Cutting feed speedmm/min1-8000Guide rail type Linear railDistance from spindle axis to column surface 650Distance between spindle nose and table surface 140-740Positioning accuracymm±0.0075Repeat positioning accuracy ±0.005Tool magazine Arm 24Max. tool diameter φ78( Adjacent)/ φ120(Apart)Max. tool weightkg8Machine weight 7400Overall dimension 3400x2580x2960Detailed Photos   TAIWAN PRECISION SPINDLE1. Spindle taper is BT40; 2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm 3. Taiwan Spindle passed dynamic balance ISO rating test  TAIWAN TOOL MAGAZINE1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds. 2. Brand: OKADA  TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder  TAIWAN PRECISION LINEAR RAILS1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class2. Brand: HIWIN or PMI  CONTROL SYSTEMStandard: GSK / KND control Optional : Siemens , FANUC, Syntec ect.  AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change  PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components  LUBRICATION SYSTEM Automatic centralized lubrication device .   ELECTRICAL COMPONENTS1.  safety electrical components 2. quick plug as standard  AIR CONDITIONERStandard with Industrial electrical cabinet air conditioner. Cooling the electric box better .  AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns  MACHINE CONSTRUCT1. High strength high quality cast iron, 2. long span bed base and vertical column structure  BT40 MILLING CHUCKStandard with BT40 milling chuck .   TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing  LEAD SCREW AND COUPLINGTaiwan precision lead screw. Lead screw bearing use S K F or NACHI bearing, 3, Coupling R+W directly connected .  SPINDLE RING COOLING Standard with Spindle ring cooling function.STRONG CHIP PUNCHINGStandard with strong chip punching Company Profile FAQ 1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
