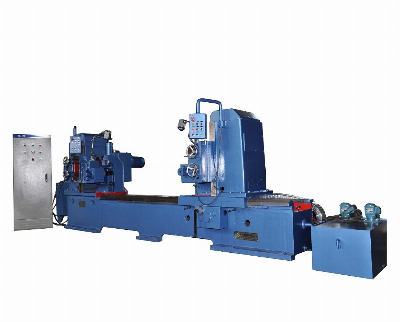

Roller Conveyor 2 Ends Shaft Milling Machine 2700mm Length High Precision

roller conveyor 2 ends shaft milling machine 2700mm length high precisionparameter:  specificationXZ36-6×230XZ36-6×270Speed for spindle500,700,900r/min500,700,900r/minDiameter of roller shaft processedΦ18~Φ60mm Φ18~Φ60mm Length of roller shaft processed200~2300mm 200~2700mm Processing shaft groove width6~45mm 6~45mm Cutting depth 0~5mm 0~5mm Spindle motor3kW×2(SET) 3kW×2(SET) Oil pump motor 5.5kW 5.5kW Hydraulic system Working pressure1.5~4MPa 1.5~4MPa Hydraulic System Flow31L/min31L/minCooling bump motor125W×2125W×2Equipment size4050mm×1300mm×1600mm4450mm×1300mm×1600mm main performanceA.it's a automatic machine to produce the oblate slot of the both sides    through clamping the roller carrier shaft which used in the conveyor roller.B.There are four spindle boxes in the machine,and each spindle   box spindle box spinning processing with one milling cutter.C.Suitable environment temperature:0-40ºCD.No corrosive medium and dust occasionMain performance and application This machine is an automatic equipment which could process the two ends of the belt conveyor roller shaft by a single clamping, which could meet the requirements of the processing of roller shaft produced both at domestic or abroad.Because every roller shaft has four grooves, the machine has four spindle boxes, a milling cutter is drove by a spindle box to process a groove.Workpieces are clamped pm the V-shaped iron by hydraulic. Droved by hydraulic, the four spindle boxes move up and down when processing, to realize fast forward, work into (cutting) and fast backward. The electronic control system applied imported programmable controller (PLC) as the center for process control, which with high degree of automation, high efficiency and reliability. It's suitable for volume production of roller shaft. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
