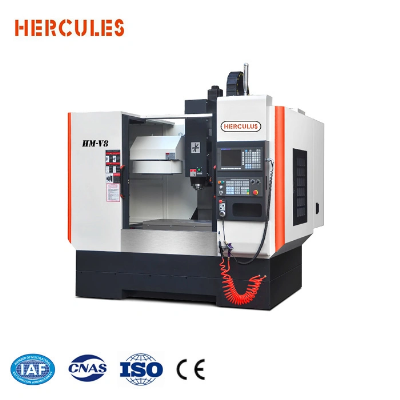

CNC Vertical Machining Center ( VMC850 CNC Milling Machine Center)

Hercules Vertical Milling CenterModel: HM-V8Performence Features:1. High Accuracy performance2. Standard VMC850 casting frame3. Taiwan HIWIN or PMT linear guideway and lead screw4. Taiwan spindle, speed range 0~8000rpm5. Umbrella 16 tools ATC or Arm type 24 tools ATC optional6. GSK or Syntech control systemStandard Accessories:GSK or SYNTECH CNC control systemRS232 interfaceTaiwan Tools magazine,Taiwan BT40 8000rpm spindle unit,3-Axis linear guideway,Taiwan Hiwin leadscrew,Full-cover protection,Heat exchangerWorklight,Coolant system,Auto-lubrication,Air gunMPGOptional accessories:CNC the 4th axisAuto chip conveyorAir conditionor in cabinetSpecificationTechnical specification HM-V8  16tools HM-V8 24tools1Working stroke X/Y/Z800*500*500mm2Table size1000*500mm3Table T grooveT Slot width 18mm - spacing 85mm * 54Maximum weight500kg5Fast moving speedX, Y, Z  32m / min6Feed motor torqueX/Y axis  15N/M   Z axis 22N/M7Feed motor powerX/Yaxis 2.4kw      Z axis 3.5kw8Positioning accuracy X, Y, Z±0.005/300mm9Repeat positioning accuracy X, Y, Z±0.003mm10Spindle speedMax. Up to 8000 rpm 11Spindle taperBT4012Spindle diameterφ14013Radial runout of spindle 0.002mm14main motor power5.5kw15Spindle center to column distance556mm16Spindle nose to table distance120~620mm17Shift modeVariable  speed18Maximum drilling capacityφ50mm(U drilling )19Maximum tapping abilityM1820Tool magazine typeUmbrella type ATC 16TArm type ATC 24T21Tool change time10 seconds (tool to tool)1.8 seconds( tool to tool)22Number of tool magazines16 tools 24 tools 23Maximum tool diameterφ10024protecting maskFull shield cover 25Programming modeComputer/manual26File transfer methodUSB/network cable27cool down450W waterproof water pump28Lubrication system2L automatic lubrication pump with oid-free alarm system 29DimensionsL2530*B2360*H2520mm30Mechanical weight≈4250kg31using electric3PH AC380V/AC220 32Gas source0.5~0.8.MPA33Total power17.5kwKey parts 1bed frameStandard VMC casting frame 2SpindeBT40 belt type quill of dia.140mm TAIWAN 3Tool magazine16T Umbrella type ATC24T Arm type ATC4Ball screw rodHIWIN OR PMI TAIWAN BRAND 4016 lead screw (Dia.40mm* pitch 16mm)5Linear guideHIWIN OR PMI TAIWAN brand linear guideway   width :35mm 6operating systemGSK25iMB-H7Servo motor X, Y130SJT-M150B8Servo motor Z175SJT-MZ220B9Spindle motor (servo)GR3050-LA2-ZJY208A-5.5BHB5A210Pneumatic ComponentsBrand :AirTACPictures for reference only: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
