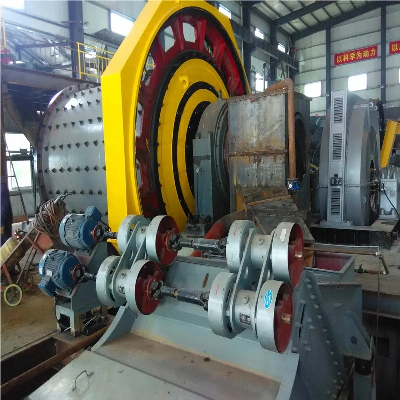

Selling Silica Sand Grinding Raw Mill Machine

Introduction:Mills are widely used in the fields of metal separating factory, metallurgy, chemical industry, construction material, power generation and etc., for grinding of kinds of minerals and rocks, and include overflow type of ball mills, grid type of ball mills, rod mills, material mills and cement mills. Application:Ball mill is the important equipment for recrushing the materials after they are primarily crushed. It is an efficient tool for grinding various materials into powder. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material. Ball mill is widely used in metallurgy, chemical, mining, cement, construction, industrial and mining industries etc.  Working Principle:The ball mill is a horizontal rotating equipment transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liners and ripple liners and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height, then impacting and grinding the materials. The grinding materials are discharged through the discharging board, thus the grinding process is finished.Structure:The device is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning girth gear adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance performance. The device is with stable and reliable working condition. Besides, according to different materials and discharging methods, there are dry and wet balls mill for choice. Features:1. The machine is made up of feeding part, discharging part, gyre part, transmission part (reducer, small transmission gear, motor, and electrical controller) and so on.2. The hollow axis adopts the cast steel and the lining can be replaced. The big rotary gear is forged from cast rolling gears.3. The barrel body is inlaid with wearable plates.4. The machine runs steadily and efficiently. Advantages:1) Ball mill is an efficient tool for grinding many materials into fine powder.2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine.3) Ball mill is widely used in building material, and chemical industry.4) There are two ways of grinding: the dry way and the wet way.5) Ball mill can be divided into wet grid mill, dry grid mill and overflow mill according to material discharging model.6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.8) The longer the ball mill runs, the finer the powder will be.9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.10) Our ball mills have been used to grind glass, create custom varnishes, make ceramic glaze, powder various chemicals. Technical ParametersTechnical Properties List Of Overflow Ball MillSpecificationShell DiameterShell LengthVolumeRotary SpeedGrinding Medium LoadTransmission TypeMotorProfile Dimensions(L × W × H)Total WeightRemarksPowerRotary Speedmmmmm3r/mintkwr/minmt MQY15 × 3015003000526.69Side-edge Transmission957427.4 × 3.4 × 2.818.5Drum FeederMQY15 × 36150036005.726.610.6957428.0 × 3.4 × 2.817.22Rubber LinersMQY18 × 611830610013.424.524.622073610.2 × 5.1 × 4.037.32 MQY21 × 30210030009.422.1152007408.5 × 4.65 × 3.045 MQY24 × 302400300012.22122.52509808.8 × 4.7 × 4.455 MQY24 × 702400700026.66214847574014.3 × 5.8 × 4.467Rubber LinersMQY27 × 362700360018.520.539400187.510.4 × 5.8 × 4.761.34 MQY27 × 402700400020.520.2438400187.59.8 × 5.8 × 4.770 MQY27 × 452700450023.520.543.5500187.512.5 × 5.8 × 4.776 MQY27 × 402700400034.3419.55363058913.5 × 5.9 × 4.771.2Rubber LinersMQY28 × 54280054003019.555.263016713 × 5.83 × 4.797.8 MQY28 × 8028008000432078.680013716.5 × 7.3 × 5115For coal water slurryMQY30 × 11030001100069.217.3100Central Transmission125042928.9 × 3.8 × 5.0227.8MQY32 × 363200360026.318.348.4Side-edge Transmission50016714.3 × 7.3 × 6.0116.94 MQY32 × 403200400029.218.26056098016.7 × 7.3 × 6.0121.4 MQY32 × 453200450032.918.360.563016713 × 7.0 × 5.82124.23 MQY32 × 543200540039.418.373 80016714.2 × 7.0 × 5.82129  MQY32 × 643200640046.7518.386100016715.2 × 7.0 × 5.8140  MQY32 × 753200750055.518.3102125073417.7 × 8.4 × 6.3154  MQY32 × 903200900064.218.3106.6125015018.5 × 7.3 × 6.0173  MQY34 × 45340045003718.474.680016711.5 × 7.0 × 6.1129.8  MQY34 × 563400560045.817.984.3112098516.7 × 7.6 × 6.13   MQY36 × 453600450041.417.2576100016713 × 7.3 × 6.3144.1  MQY36 × 5036
