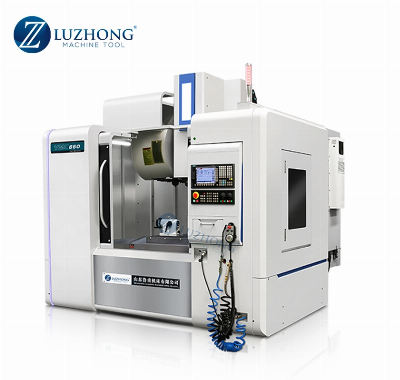

CNC Milling Machine Vertical Machining Center With CE approved (VMC650)Product Description Product Parameters Features:High quality resin sandTaiwan spindleTaiwan ball screw and locking nutTaiwan pressure cylinderJapanese NSK bearing germany R+W couplingAutomatic lubrication systemChip conveyor at optionalApplication:This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.Product main technical specifications:specificationsunitVMC850Table sizemm1000x500X axis travelmm800Y axis travelmm500Z axis travelmm500Distance between spindlecenter and column surfacemm571Distance between spindle noseand table surfacemm150-650T slot 3-18*90Spindle tapermmBT40Max. spindle speedr/min8000(10000 optional)Main motor powerkw7.5X/Y/Z axis servo motor torqueN.M15/15/18X/Y/Z motor connection directX/Y/Z guide rail form 3 axis linear guide railMax.table loadkg500Automatic tools changer 16 Armless type(optional:24 arm type)Max.tool weightkg8Max. tool lengthmm250/350Max. tool diametermm100(Adjacent)/150(Apart)X/Y/Z axis rapid traverseM/min24/24/20Cutting feed speedM/min10Position accuracymm±0.005Repeat positioning accuracymm±0.003Machine dimensionmm2800x2300x2700Machine weightkg5500Detailed Photos TAIWAN PRECISION SPINDLE1. Spindle taper is BT40; 2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm 3. Taiwan Spindle passed dynamic balance ISO rating test TAIWAN TOOL MAGAZINE1. Standard:Taiwan armless 16 tool magazine .2. Optional: Taiwan 24 Arm tool magazine, tool change time only 3 seconds. 3. Brand: OKADA TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder TAIWAN PRECISION LINEAR RAILS1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class2. Brand: HIWIN or PMI CONTROL SYSTEMStandard: GSK / KND control Optional : Siemens , FANUC, Syntec ect. AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components LUBRICATION SYSTEM Automatic centralized lubrication device . ELECTRICAL COMPONENTS1. safety electrical components 2. quick plug as standard AIR CONDITIONERStandard with Industrial electrical cabinet air conditioner. Cooling the electric box better . AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns MACHINE CONSTRUCT1. High strength high quality cast iron, 2. long span bed base and vertical column structure BT40 MILLING CHUCKStandard with BT40 milling chuck . TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing Company Profile FAQ 1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
