Easy Shift Between Vrtical or Horizontal Milling

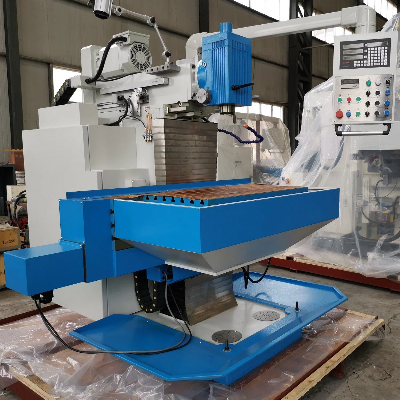

Product Description high precision universal metalworking milling machineDetailed Photos Spindle:√ step-less spindle speed, in high & low speed ranges, suitable for high-speed-fine-machining & low-speed-powerful-machining√ vertical & horizontal spindles combined, for flexible operation√ 60mm spindle stroke, milling and drilling functions are availableworking feed√ X/Y/Z-axis ball screws, good precision√ X/Y/Z-axis driven by 3 independent servo motors, can realize X/Y/Z-axis synchronous feeding√ servo motors for spindle and feeding, machine with low noise, good precision, easy to maintenance√ X/Y/Z-axis with electronic handwheels, for easy and precise manual-feeding√ vertical & horizontal combined work-tables, for flexible clamping of workpiece√ fitted with automatic centralized lubrication system, for automatic timing lubricationaccessory   Product ParametersItemsXL8132XL8140XL8145Working areaWorktable size (L×W)750x320mm800x400mm850x450mmT slot (Width x No. x pitch)14x5x63mm14x6x63mm14x7x63mmVertical table size890x225mm1020x225mm1190x250mmT slot (Width x No. x pitch) Vertical table14x3x63mmMax. load of table160kg200kg300kgTorque of feed motor (X)7.7Nm7.7Nm10NmTorque of feed motor (Y)7.7Nm7.7Nm10NmTorque of feed motor (Z)10Nm10Nm15NmSpindle axis-to-table surface distance(Horizontal)145-545mm145-545mm170-620mmSpindle nose-to-table surface distance(Vertical)50-450mm50-450mm75-525mmTravelsLongitudinal travel (X)405mm500mm600mmTransverse travel (Y)305mm400mm450mmVertical travel (Z)400mm400mm450mmFeeds of X Y Z axis10-1000mm/minRapid feed1200mm/minSpindleSpindle speed (V&H)2 steps;40-260rpm, 260-2000rpmSpindle taper (V&H)NT40Vertical quill travel60mmMain motor power3.7kW3.7kW5.5kWOthersMachine size (L×W×H)1500x1700x1800mm1500x1700x1800mm1600x1800x2000mmNet weight1450 kg1550 kg1750 kg  Certifications     Packaging & ShippingDelivery time: generally 3 months production time after confirmation of orderPacking type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)Packing size: 2100 x 1900 x 2250mm (L / W / H), can be delivered in 20GP container.Company Profile  Shandong XILI Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.Hope we can built long-term business relationship with you.  FAQ1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & manual milling machines. Include:CNC gantry machining centerVertical machining centerSimple NC milling machineConventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)6. How can I believe your company ?XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.Welcome your inquiry and visiting.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
