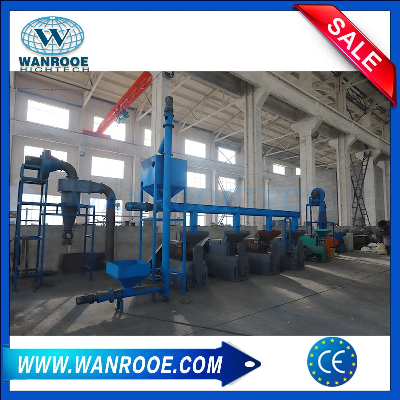

Rubber and Tire Production Recycling Pulverizer Plastic Milling Machine

Rubber and Tire Production Recycling Pulverizer Plastic Milling MachineApplications:To make rubber powder, and can add to the tire recycling line.Relationship between fineness and application of rubber powder.(1) 8-20 mesh: Mainly used in the pavement of track, road cushion layer, base plate, lawn, paving elastic layer, ground, etc.(2) 20-40mesh: Mainly used in producing reclaimed rubber and rubber board, modifying rubber powder, paving roads(3) 40-60 mesh: Called fine rubber powder, used in filling of rubber products, modifying of plastic, etc.(4) 60-80 mesh: Called refine rubber powder, used in automatic tires, rubber products, construction materials, and so on(5) 80-200mesh: Called subtle rubber powder, used in rubber products and so on.Description:Rubber milling machine is ideal for grinding 1-4mm rubber particles into 20-100 mesh rubber powder at normal temperatures. Two millstones contain in the machine, which are moving millstone and fixed millstone. The grinding can be achieved through the relative motion of the two millstones. Unique cooling system can not only lower the temperature to improve efficiency, but make it suitable for grinding heat-sensitive plastic. This rubber grinder machine is widely used in waste tire recycling plant.Features:1.This machine is widely used in milling the natural rubber, synthetic rubber and plastic powder production etc.2.Developed by adopting domestic and overseas technology.3.Mainly composed of one or multiple millers, collector, draught fan, cyclone and control cabinet system.4.Miller consists of frame, motor, stepless feeding motor, feeding device, fixed and rotary discs.5.Basic principle is to mill and grind rubber into rubber powders by the relative movement of fixed and rotary discs.6.Wind and water cooling system can ensure the output quality7.With such features as low noise, easy operation, high output and maintenance, no pollution and evenmilling size, etc.Specifications:Model PNRP-280 PNRP-300Main motor power 22kw*3=66kw30kw*3=90kwSpeed motor power 1.5kw*3=4.5kw1.5kw*3=4.5kwAir blower power 7.5kw7.5kwAir seal power 0.75kw0.75kw Feed size 1-8mm1-8mmFinal fineness 20-80mesh30-100meshCapacity (kg/h) 200-500300-500 Working temperature
