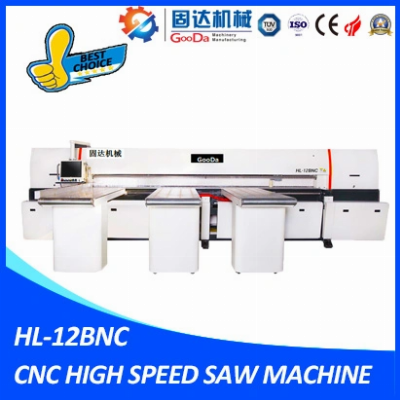

In GOODA,the future of processingCompany profilesDuplex cnc milling machine ,made in china,gained 38 patent certifications12 years experience, 3years guarantee.high efficiency, high accuracy , high quality.GooDa CNC series milling machine are your best choice!Dongguan GooDa Machinery Manufacturing Co.,LtdAddress: No.216,Huanchang North Road,Changping Town, Dongguang City, GD, China Website: http://goodacnc.en.made-in-china.comProduct DescriptionGOODA HL-12BNCIntroduction of Sawing MachineModel: HL-12BNC full-automatic high speed precision aluminum plate sawing machine HL represents the model of the aluminum plate sawing machine from Heineda2 represents the sawing capability of the aluminum plate saw machine: the maximum sawing width of 3800mmthe maximum sawing height of 160mmthe maximum sawing length of 3800mmBNC represents the aluminum plate sawing machine is the full-automatic model. CNC High Speed Circular Sawing machine is a machine that specialize in aluminum Square Bar be cut to pieces equipment. Applying mainly to sawing processing of aluminum alloy plates, the equipment has high reliability, high sawing efficiency, low operation cost, complete safety protection functions, sufficient static and dynamic rigidity and other significant characteristics. With the most advanced technology currently, it ensures the favorable dynamic quality of the system. The machine tool features simple utilization, operation and maintenance, appealing modeling and excellent after-sales service. Design Concept & Functions:1.The machinery framework is in the heavy-duty structure so that equipment enjoys stable operation.2.The sawing foundation is in the lateral suspension structure; the quide device is arranged with double-row roller type straight slide rail.3.In the travelling of sawing foundation, the grinding gear, rack and servo motor are arranged to guarantee the compatibility of sawing speed.4.The pressing materials hood is in the overall design so that materials do not slide in the sawing.5.The sucking pipe is reserved; large power dust collector is arranged.6.Except for the floating rollers, all other contents on the working platform are made of chromium-plated steel plate in order to avoid scratch of materials.7.The suspended feeding clamp claw features as air pressure driving and clamping.8.The driver of feeding mechanism is in the structure of servo motor + gear and rack.9.The sawing foundation is elevated by hydraulic power; the ascending height of sawing blade is det up according to the plate thickness.Execution standards of design and manufacture:a. Design and manufacture of the equipment conform to ISO: 9001 international standard.b. Design and manufacture of the equipment conform to CE standard certification. c. Unit of measurement of all components and various instruments of the equipment adopt the international unit (SI) standard; main parts (include mechanical, electrical and electronic devices) of the equipment have reliable safety protection to prevent inaccurate operation or unexpected accident from damaging the machine. I. Technical Specifications and Parameters Model HL-12BNCSawing capability Cutting length 3800mmCutting width 3800mmMaximum cutting height 160mmMaximum exposed height of saw blade 165mmMain saw bladeMain saw motor 15KWDiameter of main saw Ø550mmDiameter of main saw shaft core Ø 38mmSpeed of main saw 3900 r/minSaw seat Travel frequency conversion motor AC 2.2KWForward speed Fastest 10m/min (load)Backward speed Fastest 22 m/min Automatic feeding engine AC 3KWUtilization pressure ≥5.0 kg/cm2Distance between working bench and floor 1130 mmAppearance size (L×W×H) of machine tool 7100×7700×1980Voltage II. Mechanical Characteristics1,Touch type operation monitor1.1,.Touch type operation screen. 1.2 Several groups of working parameters can be set simultaneously to facilitate switching during sawing. 1.3 Guiding type input function.1.4 Fault self-detection function. 2. Feeding rack part: 2.1 Sizes to be cut can be input from the master control computer. An aluminum plates is fed from the front end of the equipment and clings to the front end of the feeder. Then the feeder clamps and pulls the plate in the machine automatically before automatic positioning. During sawing, the machine positions the plate to the set size automatically for sawing. The plate keeps its fixed status (the feeder ensures sufficient clamping strength and the hold-down beam compresses the plate tightly) all the time throughout the sawing process to ensure the sawing accuracy. 2.2 Bed rails at both sides of the feeding rack part consist of the welded steel beam structure. The hard chrome plating guide rail on the one side and the plane guide rail on the other side work with the gear wheel and gear rack for transmission, with magnetic ruler up to the accuracy in a dual-comparison mode. Besides, a reducer and 3 kilowatt servo motor are equipped for accurate and rapid driving and positioning.
