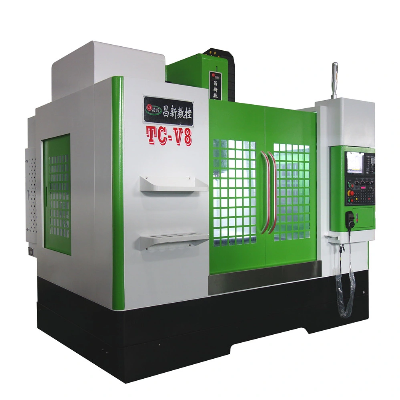

BT40 Taiwan spindle cnc milling machine center with Fanuc control TC-V8Specification: 3 Axis Milling Machine Center TC-V8Machine BodyChansin three linear guide rails high strength bodySystem:Taiwan Syntec 22MA / Japan Mitsubishi M80A / Japan Fanuc 0i-MFMotor:Servo motor:Japan YASKAWA / Mitsubishi/FanucAuto Lubrication System:auto evenly distributing lubricationTool Magazine:Taiwan ATC Arm type tool magazine (24 tools)Bearing:Japan NSK or German FAG optionalX/Y/Z-Axis Travel800mm/500mm/500mmDistance from Spindle Nose to Table120mm-700mmDistance from Spindle Center to Column Guide Rail550mmWorking Table Size1000*500mmTable Max Load600kgT Slot5pcs,size:18T,Interval:100mmMain SpindleTaiwan Royal/Volis/TDSpindle Speed12000rpmSpindle Motor Power7.5kwX/Y/Z-Axis Motor Power2.0kw/2.0kw/3.0kwRapid Traverse(X/Y/Z)48000/48000mm/48000mm/minCutting Speed18000mm/minSpindle Taper DiameterBT40Positioning Accuracy±0.005/300mmRepeat Positioning Accuracy±0.003/300mmTotal Electricity Demand20kwMachine Size2680*2265*2350mmMachine Weight5.5tonHarden guide rail and ball screwTaiwan HiwinMachine Head Balance SystemComes with counterweight balance systemCouplingGerman BK3 SW*JMain electrical accessoriesGerman Schneider, Merlin GerinCircuit breakers and relaysGerman Schneider, Merlin GerinWorking LED lampTaiwan AccessoriesTool box (1 set)Tool Holder(2 pcs)6 inch vise and Lock knife seat (1 set)Machine operating manualOperation and programming manualServo Motor and Controller ManualHigh pressure spray gun(1 pcs)Hand Wheel (1 pcs)Oil cooling station (1 set)Payment Term:Payment:40% deposit,the balance will be paid before shipping.Delivery:20-30 days after received the deposit payment. Remarks:1.Warranty:One year free warranty and life time maintenance.2. Loading port: Shenzhen/Guangzhou3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.4th/5th rotary table optional: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
