Manual for X6332 Mini turret milling machine head

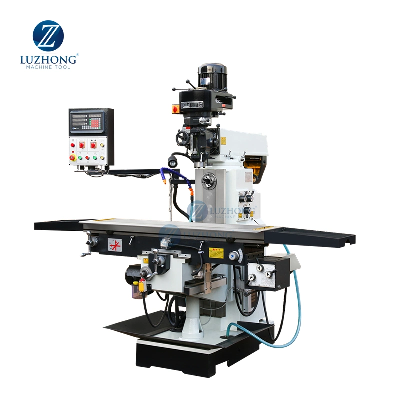

Turret Milling Machine X6332 Universal Milling MachineProduct DescriptionProduct ParametersProduct main technical specifications:SpecificationsUnitsX6332Table sizemm1370×320Table travelmm800/300/400T slot(number-width-pitch)mm3-14-70Spindle taper ISO40 7:24 Spindle speed rangerpm(V) 50HZ:65-4500 60HZ:80-5440 16 steps(H) 40-1300 12 stepsOptional: variable 65-4000Spindle travelmm127Spindle feed rangemm0.04,0.08,0.15(3 steps)Distance between spindle nose and table surfacemm140-540Distance between spindle axis and table surfacemm0-400Main motor powerkw2.2(V)3(H)Head rotation (left - right )°±90°Head rotation (front - rear)°±45°Weightkg2000Overall dimensionmm2200x1820x2350Detailed PhotosCompany ProfileFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
