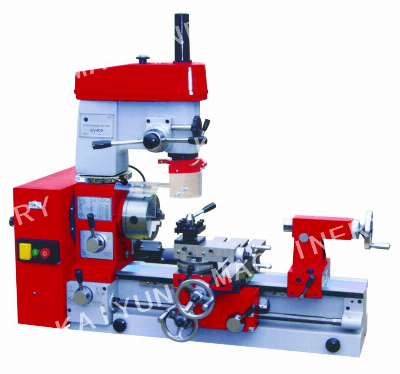

Combination Variable Speed Manual Mini Lathe Drilling Milling Machine (KY400)

SpecificationModel NoKY400Swing over bed420mm Distance between centers400mmTaper of spind boreMT3 Spindle bore20mm Range of spindle speeds160-1360rpm Range of lingitudinal feed0.05-1.75mm/r Range of inch threads8-120T.P.I Tange of metric threads0.2-3mm Travel of top slide80mm Travel of cross slide120mm Tailstock spindle travel70mm Taper of tailstock quillMT3 Drilling &MillingDrill capacity15mm Milling table150*200mm End mill capacity20mm Face mill capacity63mm Spindle travel85mm Taper in spindle boreM.T.3 Range of spindle speeds117 ~1300RPMOptional accessoriesFour-jaw chuck 1 setBackplate1 pc Follow rest1 pc  Steady rest1 pc Face plate1 pc Collet chuck1 set Turning tools1 pc Standard AccessoriesDrilling chuck 1 pcToolbox & tools1 set Features360°  rotation in vertical planeDrill / Mill vice-incorporated in top slidePower lingitudinal feed allows threading Forward / Reverse switchMagnetic switch and chuck cover according to "CE" standardFully-adjustable carriageFour-Position Turret PostShielded and lubricated-for-life bearingspackingWarehouse to film  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
