CNC Horizontal Screw / Worm Milling Machine

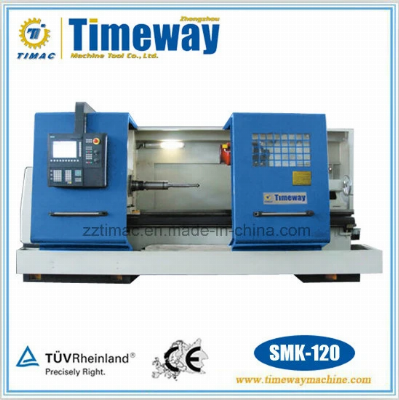

CNC Horizontal Screw/Worm Milling MachineSMK-70    SMK-120   Features:The machine is designed a highly efficient processing equipment for axisymmetrical spiral parts. Layout of horizontal lathe, precision-ground high hardness guideway, high-rigidity wide bed; Adpot SIEMENS CNC system to realize automatically cutting by four-axis linkage. Cyclone milling cutting inside, high milling efficiency(6-20times of turning), spindle transmission chain is short, transmission accuracy is high, roughness is to Ra0.8um, half-enclosed protection.  Technical ParameterSpecificationUnitSMK-120Max. turning diameter over bedmmΦ630Max. turning diameter over carriagemmΦ350Max. length of workpiecemm1500Max. cutter head diametermmΦ120Max. milling helix angledeg15°Milling head speed rangerpm200-900Type of spindle head-Thread-connectionC-axis speed rangerpm0.1-50Bed widthmm550Diameter of tailstock quillmmΦ100Tailstock quill taper-MT5X-axis servo motor torqueN.m11C-axis servo motor torqueN.m143Z-axis servo motor torqueN.m16Milling head motor powerkw5.5X/Z-axis min. feeding unitmm0.001X/Z-axis positioning accuracymm0.01Processing accuracy of screw-pitch-IT7Roughness of workpiece surfaceumRa1.6-0.8Cooling type of cutter-NatureMachine dimension(LxWxH)mm3660x1630x1840CNC system-SIEMENS 828D   SpecificationUnitSMK-70Max. turning diameter over bedmmΦ400Max. cutting diameter of workpiecemmΦ70Max. length of workpiecemm1000Max. milling helix angledeg25°Milling cutter speedrpm1200Spindle taper-C8Spindle hole diametermm82Milling head motor powerkw1.5X-axis motor torqueN.m4Z-axis motor torqueN.m6C-axis motor powerkw0.75X-axis travelmm300X/Z-axis rapid feed speedmm/min6000C-axis speed rangerpm0.8-18.4Tailstock quill diameter/travelmmΦ70/150Tailstock quill taper-MT5Number of tools-2Size of tool-shankmm16x20CNC system-KND 1000TiX/Z-axis min. feed unitmm0.001X/Z-axis positioning accuracymm0.01Adjustable accuracy of helix angle′1RoughnessumRa0.8Worm-bar accuracy-IT7Machine dimension(LxWxH)mm2600x1300x1560Machine weightkg2500Machining lengthmm750/1000/1500/2000/3000   Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
