PVC Pulverizer Machine, High Speed Plastic Miller

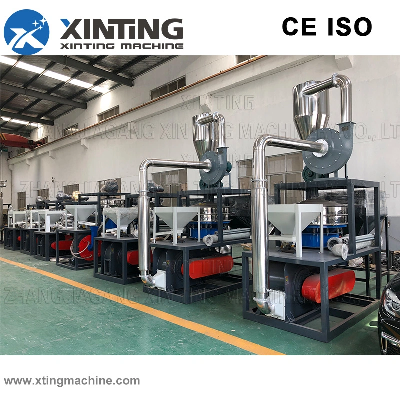

PVC Pulverizer Machine,High Speed Plastic Miller Descriptionpvc pp pe eva plastic miller :This PVC Plastic PE mill is chiefly designed to grind PVC and PE. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.The output of our pulverizer can reach 100-900kg/h (15-100mesh).The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.Technical Features:1.  Pulverizer can easy to grind all kinds Hard & Soft PVC into powder.2. The dust collector is added to effectively reduce dust pollution.3. The discharging of the main fan reduces labors intensity of operating workers.4. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.5. The mill use the water and wind double cooling system ,Prevent bearing and other parts from overheating.6. The powder mesh is adjustable(15-100mesh).7. Easy installation and maintenance, just open the door to clean up.8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.Parameters for miller machine   ModelSMW-400SMW-500SMW-520SMW-550SMW-600Milling chamber DIA:Φ400Φ500Φ520Φ550Φ600Rotor QTY33333Main Speed RPM.38003900390039003900Main motor power:30KW30KW37KW37KW45KWClose blower power0.75kw0.75KW0.75KW0.75KW0.75KWBlower power2.2kw2.2KW3KW3KW4KWFinal powder size12-120 micron12-120 micron12-120 micron12-120 micron12-120 microncapacity50-120kg/hr150-200kg/hr180-250kg/hr200-300kg/hr300-550kg/hrRound Vibrating sievewithoutCustomizedCustomizedCustomizedCustomizedDust collecting systemwithoutCustomizedCustomizedCustomizedCustomizedCooling systemWater coolingWater coolingWater coolingWater coolingWater coolingMachine weight850kgs1200kgs1250kgs1300kgs1550kgsDimension2200*800*2100 (mm)5900*1450*2900 (mm)     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
