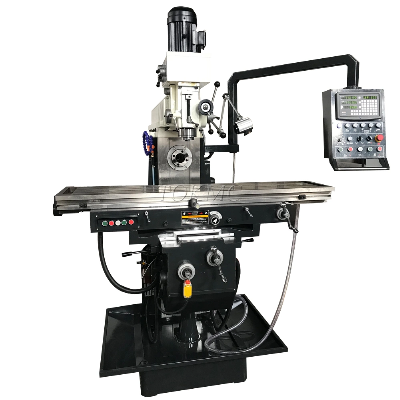

Vertical Milling Machine /Milling machineSwivel head 45 degreeServo motorCommon lead screw Drilling Milling Machine ZXS1668Spindle taperISO40Spindle motor2.2 kwSpindle speed 90-2000 (Vertical) rpm60-1850 (H)Spindle head tilting±45 degreeWorktable size1700X400mmWorktable swivel angle±45°The max.weight on worktable1000 kgsT-slots Number-table Width -Distance4-18mm-100mmTable travel Longitudinal/Cross/Vertical 1300mm/420mm/600mmX.Y.axes feeding8steps25-800mm/minRapid feeding 800mm/minZ axes feeding8 steps 8-267mm/min Fast forward 267mm/minDistance from spindle hole center to worktable surface main horizontal spindle0-440mmmilling head horizontal (low position)150-590mmmilling head horizontal(side position)340-780mmmilling head horizontal (high position)530-970mmDistance from spindle nose to worktable surface50-650mm(Vertical)Distance from Vertical spindle center to guideway surface0-1000mm(Vertical milling spindle head)vertical swivel angle of milling head360°Main motorVertical Milling 7.5KW (Vertical) Horizontal Milling 5.5KW (Horizontal)Feeding motor (Servo motor)2.36KW 15N.MCoolant pump motor90WCoolant pump flux25 Litres/minuteOverall dimensions2300X2300X2270mmG.Wabout 3200kgCompany InfoFAQ -When do you delivery?Depending on your community we delivery ,10-30 days-Is machine tested ?The accuracy , noisy will be tested.Machine will be running one hour before despatch-How do I pay? Do you accept cash or L/C?We accept Interac e-transfers .cash, and T/T ,L/C-How is the warranty ?12 months- If i have a problem, Will you be available by email to assist with solving the problem.Video techanical support, online service ,We can answer it in 24 hours. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
