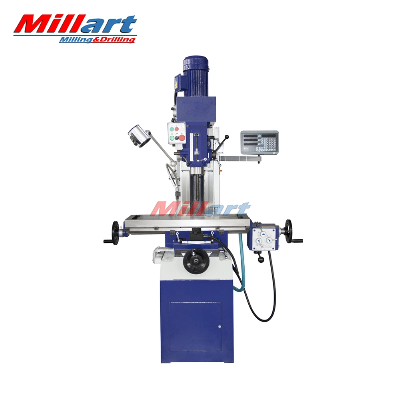

Bench Mill Machine Zx50z Geared Drilling Milling Machine

Bench Mill Machine ZX50Z Geared Drilling Milling Machine1. Universal use as milling machines and drill press2. Easily shiftable gear drive ensures power transmission without losses3. Gear box spindle drive,with automatic feeding of spindle and micro feeding.4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines6. Milling table swivels horizontally, including scale7. Dovetail guides on all 3 axes8. Head, table height can be adjusted through gear rack9. Forward/reverse setting through motor switchSpecifications:ModelZX50ZMaximal drilling capacity40 (ISO)Maximal milling width80 mmMaximal milling capacity25 mmNumber of spindle speeds8Spindle speed range60 - 1500 rpmSpindle distance from column surface320 mmSpindle distance from table30 - 350 mmSpindle travel120 mmTable travel360 x 210 mmTable size800 x 240 mmMotor1.5 kWDimensions1280 x 970 x 1650 mmStandard accessories:Drill chuckCollet chuck kitsWork lampCoolant systemSome toolsReduction SleeveDraw barOptional accessories:X axis auto power feedWorktable swivel2 axis DRO3 axis DROMachine Vice  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
