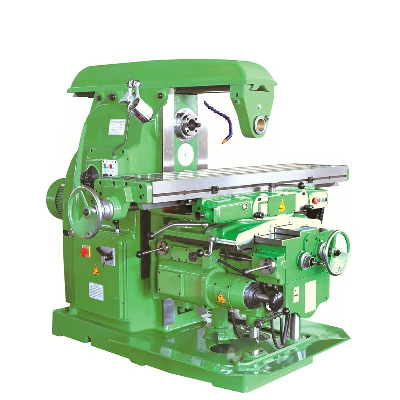

X6140 Universal Milling Machine ISO 40 CE and ISO9001 Certificate

X6140 horizontal manual milling machine for metal processingProduct Description√   conventional horizontal knee type milling machine√   gearbox directly driven spindle for powerful milling√   18 steps, 30-1500rpm wide range spindle speed, ensures good torque when operating√   mechanical driven work-table with high rigidity√   work-table swivel ±45° (left and right), enlarge the processing range√   high rigidity machine structure ensures 800kg (X6140), 500kg (X6132) heavy load capacity√   control buttons are located both in front and at side of machine body, convenient to operate  Product Parameters SpecificationUnitX6140X6132Table sizemm1700X4001325X320T-slots(NO./Width/Pitch) 3/18/903/18/70X axis travel(manual/auto)mm900/880700/680Y axis travel(manual/auto)mm315/300255/240Z axis travel(manual/auto)mm350/330320/300Rapid feed speedmm/min2300/2300/770Table feed speed-X/Ymm/min23.5-1180Table feed speed-Zmm/min8-394Max loadkg800500Spindle taper 7:24 ISO50Spindle speed ranger/min30~1500Spindle speed stepsteps18 stepsMax.swivel angle of table ±45°Spindle axis to table distance mm30-38030-350Main motor Powerkw117.5Overall dimensionsmm2556×2159×17702294X1770X1610Net weightkg38502650 Standard Configurationstanard configuration  .ItemSpecification1lubrication system-2water cooling system with spray nozzle-3work lamp-4draw bar-5milling chuck setISO50 (or ISO40)6reducer sleeveISO50-Φ40 (or ISO40-Φ32)7tools & metallic tool box-  Optional Configuration    Certificationsproducts are strictly according to European standard, with CE certificate  Packaging & ShippingDelivery time: generally 60 days production time after confirmation of orderPacking type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)Delivery type: 20GP container is enough to loadCompany Other Products  Company has mainly 12 series products include hundreds of models: CNC gantry type machining center,VMC machining center,Simple NC milling machine,conventional Vertical milling machine,conventional Horizontal milling machine,conventional Universal swivel head milling machine,conventional Sliding rammilling machine,conventional Bed type milling machine,conventional Tool milling machine,conventional Gantry milling machine etc.FAQ1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & manual milling machines. Include:CNC gantry machining centerVertical machining centerSimple NC milling machineConventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)5. How can I believe your company ?XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
