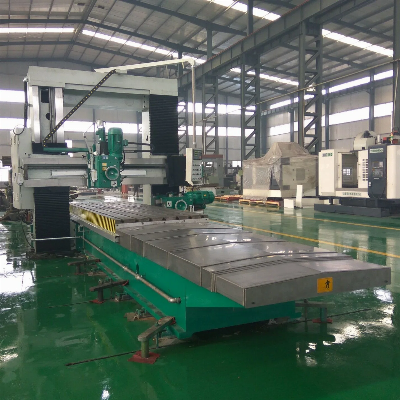

X2010 Gantry Type Linear Milling Machine

X2010 Gantry Type Linear Milling Machine  Product Parameters  SpecificationUnit X2010*2mX2010*3mWorking capacityX axis travel (table)mm20003000Y axis travel (vertical mill head along beam)mm1300Z axis travel (beam lifting travel)mm840Column distancemm1440Max height allowed to passmm1000Table sizemm2000×10003000×1000T-slots(N*W*D)mm7*22*125Vertical spindle nose to table distancemm200-1040Max loadkg20003000FeedX axis feed speed (table)mm/min0-1360Y axis feed speed (vertical mill head along beam)mm/min65/320/890Z-axis beam lifting speedmm/min430Mill head sliding ram stroke speedmm/min280Vertical Mill headSpeed rangerpm82-505(6 step)Max torqueNm790Spindle taper ISO 50Spindle strokeMm300Swivel angle ±35°Horizontal Mill headSpeed rangerpm82-505(6 step)Max torqueNm790Spindle taper ISO50Spindle strokeMm300MotorMill head motorkw7.5X axis feed motorkw45.5Y axis feed motor (vertical head along beam)kw1.1Z axis feed motor (beam lifting motor)kw2.2Lateral head lifting motorkw1.1Dimensions / weightMachine dimensionsmm5400×3000×25007400×3000×2500Weightkg1100012000Product Description√   vertical and horizontal two milling heads, wide working range flexible operation√   vertical mill head can swivel 35° (left & right), mill head sliding ram with 300mm stroke travel, further enlarge working range√   rectangular & 'V' type worktable guideway, high rigidity & low friction, 2-3 ton load capacity√   brief designed control panel, easy to operateCertificationsproducts are strictly according to Europe standard with CE certificate    Packaging & ShippingPacking type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)Delivery time: generally 60 days production time after the confirmation of order  Company Other ProductsCompany has mainly 12 series products include hundreds of models:   CNC gantry type machining center, Vertical machining center, Horizontal machining center, CNC lathe, Simple NC milling machine, Vertical milling machine, Horizontal milling machine, Universal swivel head milling machine, Sliding ram milling machine, Bed type milling machine, Tool milling machine, Gantry type milling machine etc.FAQ   1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & conventional manual milling machines. Include:CNC gantry machining centerVertical machining centerSimple NC milling machineConventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)5. How can I believe your company ?XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.Welcome all friends around the world inquiring and visiting./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
