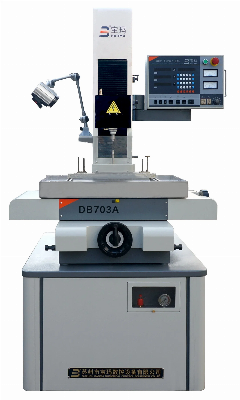

Small Hole EDM Machine dB703A

Main FunctionNEW Functions without price increased:Z axis with DC servo motors, with faster moving speed 2-3 times faster Function for drilling larger diameter electrodes, Dia1.5 or more.Function for Drilling Harden materialA. There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure. B. Servo control system is adopted and improved, which make drilling re-track speed 2 times quicker than dB703 C. There is slider water tank, which saves space and is more environmental. D. There is oil-tank for lubrication, which is more convenient to operate and fluid to lubricate. E. Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc. F. Able to drill holes range from diameter 0.2- 3mm with max depth-diameter ration 300: 1. G. It is more stable while drilling hole of 0.2mm H. Drilling speed 30-60mm/min I. Able to drill directly into bevel or curve surface. J. Three axis digital display K. Drilling depth positioning function for Z axis L. Control system can drill group hole and positioning automatically.   DB703A Universal Parameter    Work table Size310x 486 mmDrilling Depth0 - 300 mm    Work Table Travel300 x 400 mmZ axis Travel300+(320) mm    Load of Table300 KgMax. Drilling Speed60 mm2/min    Electrode Diameter0.3-3.0 mmMax. Working Current30 A    Water Tank Capacity30 LMax. Power comsumption3.5 KVA    Machine Weight700 KgVoltage220-415V / 50HZ    Machine Dimensions1236 x 1025 x 1934 mmWorking SolutionWater/Saponification    Packing Dimensions1430 x 1340 x 2000 mmFunction of setting depthYes    Control TypeZNC: Z axis NC ControlZ axis Travel ControlElectric Motor      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
