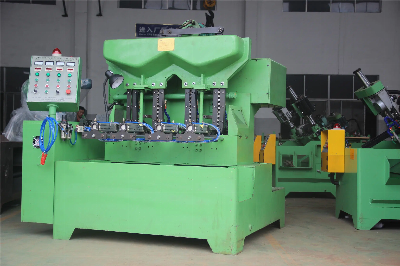

Flange/Hexagon Nut Tapping Machine

Main application of hexagon nut tapping machine:This is special tapping machine for flange nut, hexagon nut and so on, it is also possible to customize the tapping of non-standard products. Configuration and characteristic for hexagon nut tapping machine:1, This machine is a special tapping machine for flange and hexagon nut. 2, The vibration disc is used to feed the flange nut, the hexagon nut is used hopper to feed, it is full automation, one person can operate many tapping machines. 3, The machine of above M14 use frequency conversion speed control. 4, The machine of above M16 use chain transmission.5, It can only be used for the product tapping of the perforated and angular product. Equipment model1, the series of equipment models are: GB-Z/L () HC- () 2, the series models are divided into four groups of machines and two groups of machines, the user can choose according to their own production needs, the units in the work is completely independent, not interfere with each other. 3, model named HC- G (digital) B Z/L -H (digital) Unit Lou:Machine hopper feed Vibrating feeder Special machine for standard nut Tapping machine Mechanical size and size Hai Cheng's products: For example: HC-1GB-L4 said Haicheng 1# standard nut tapping machine, hopper feed and four sets of machines. Parameter list:modelTapping range mmSpeed regulation mode (optional)Clamping typeTheoretical yield Grain per minute / groupOutline dimension mmHC-1GB-Z/L()M3-10Belt wheel / frequency conversionPneumaticM3-4≈60M5-6≈45M8-10≈35 M3-4≈38M5-6≈35M8-10≈30 HC-2GB-Z/L()M12-14Belt wheel / frequency conversionPneumaticM12≈30M14≈25 M12≈20M14≈18 HC-3GB-Z/L()M16-18frequency conversionPneumaticM16≈18M18≈13 M16≈13M18≈10 HC-4GB-Z/L()M20-24frequency conversionPneumaticM20≈10M22≈8  M20≈6M22≈5HC-5GB-Z/L()M26-M28frequency conversionPneumaticM26≈7M28≈6 M26≈4M28≈4HC-6GB-Z/L()M30-32frequency conversionPneumaticM30≈5M32≈4 M30≈3 M32≈2 Contact:Address:Industrial District, wanshi Town Yixing City, Jiangsu Province, China  Sales:Mr. Yuly Lee/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
