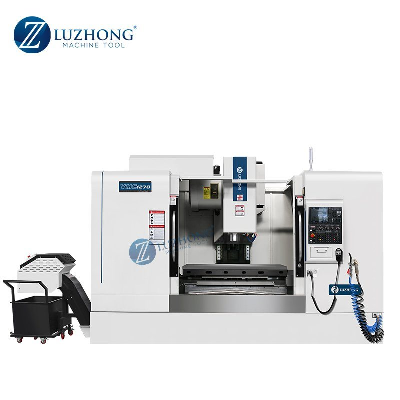

Precision Milling Machine for Mould Making VMC1270 CNC Machining Center

Precision Milling Machine for Mould Making VMC1270 CNC Machining CenterProduct Description Features:High quality resin sandTaiwan spindleTaiwan ball screw and locking nutTaiwan pressure cylinderJapanese NSK bearing germany R+W couplingAutomatic lubrication systemChip conveyor at optionalApplication:This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.Product ParametersProduct main technical parameters:SpecificationUnitsVMC1270Table sizemm1260*700X axis travelmm1200Y axis travelmm700Z axis travelmm700Max. table loadkg1000T slot(number-width*pitch)-5-18*130Max. spindle speedrpm8000Spindle tapermmBT40Main motor powerkw11/15X/Y/Z rapid traverse speedm/min24/24/18Cutting feed speedmm/min1-6000Guide rail type-Linear rail Distance from spindle axis to column surfacemm750Distance between spindle nose and table surfacemm100-800Positioning accuracymm±0.0075Repeat positioning accuracymm±0.005Tool magazine-Arm 24Max. tool diameter mm78/120Max. tool weightkg18Machine weightkg8000Overall dimension(L*W*H)mm3400*2900*3000   Detailed Photos TAIWAN PRECISION LINEAR RAILS1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class2. Brand: HIWIN or PMI TAIWAN PRECISION SPINDLE1. Spindle taper is BT40; 2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm 3. Taiwan Spindle passed dynamic balance ISO rating test  TAIWAN TOOL MAGAZINE1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds. 2. Brand: OKADA  LEAD SCREW AND COUPLINGTaiwan precision lead screw.  1.Lead screw bearing use SKF or NACHI bearing,2. Coupling R+W directly connected .MACHINE CONSTRUCT  1.High strength high quality cast iron, 2.long span bed base and vertical column structure  STRONG CHIP PUNCHINGStandard with strong chip punching  TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder  AIR CONDITIONERStandard with Industrial electrical cabinet air conditioner. Cooling the electric box better .    CONTROL SYSTEMStandard: GSK / KND control Optional : Siemens , FANUC, Syntec ect.  AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change  LUBRICATION SYSTEM Automatic centralized lubrication device .  SCHNEIDER ELECTRICAL COMPONENTS1. with Schneider safety electrical components 2. quick plug as standard  PNEUMATIC COMPONENTSStandard with AirTAC Pneumatic Components  TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing  SPINDLE RING COOLINGStandard with Spindle ring cooling function.  AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns   Company Information Contact UsFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
