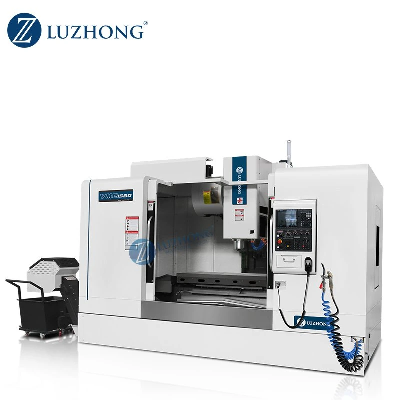

High Quality Precision Machine Center VMC1580 Metal CNC Vertical Milling Machine PriceProduct DescriptionFeatures:High quality resin sandTaiwan spindleTaiwan ball screw and locking nutTaiwan pressure cylinderJapanese NSK bearing germany R+W couplingAutomatic lubrication systemChip conveyor at optionalApplication:This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.Product ParametersProduct main technical parameters:SPECIFICATIONUnitsVMC1580Table sizemm1700*800X axis travelmm1500Y axis travelmm800Z axis travelmm700Max. table loadkg1500T slot(number-width*pitch)-5-22*135Max. spindle speedrpm6000( Options 1:8000)Spindle tapermmBT50Main motor powerkw15/18.5X/Y/Z rapid traverse speedm/min15/15/12Cutting feed speedmm/min1-5000Guide rail type-Linear railDistance from spindle axis to column surfacemm810Distance between spindle nose and table surfacemm170-840Positioning accuracymm±0.01Repeat positioning accuracymm±0.0075Tool magazine-Arm 24Max. tool diametermmΦ112 (Adjacent)/ Φ200 (Apart)Max. tool weightkg18Machine weightkg13000Overall dimensionmm4300*3200*3100Detailed Photos TAIWAN PRECISION LINEAR RAILS1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class2. Brand: HIWIN or PMI TAIWAN PRECISION SPINDLE1. Spindle taper is BT50; 2. Spindle speed 6000rpm , can enlarge to 8000rpm 3. Taiwan Spindle passed dynamic balance ISO rating test TAIWAN TOOL MAGAZINE1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds. 2. Brand: OKADA LEAD SCREW AND COUPLINGTaiwan precision lead screw. 1.Lead screw bearing use SKF or NACHI bearing,2. Coupling R+W directly connected .MACHINE CONSTRUCT 1.High strength high quality cast iron, 2.long span bed base and vertical column structure STRONG CHIP PUNCHINGStandard with strong chip punching TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder AIR CONDITIONERStandard with Industrial electrical cabinet air conditioner. Cooling the electric box better . CONTROL SYSTEMStandard: GSK / KND control Optional : Siemens , FANUC, Syntec ect. AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change LUBRICATION SYSTEM Automatic centralized lubrication device . SCHNEIDER ELECTRICAL COMPONENTS1. with Schneider safety electrical components 2. quick plug as standard PNEUMATIC COMPONENTSStandard with AirTAC Pneumatic Components TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing SPINDLE RING COOLINGStandard with Spindle ring cooling function. AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns Company Information Contact UsFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
