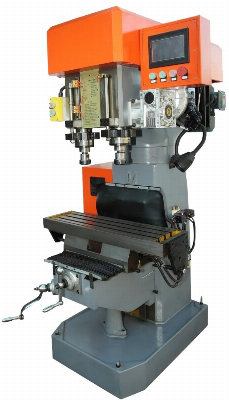

Automatic Dual Axis Drilling Tapping Milling Compound Machine for Thread Faucet

Automatic Dual Axis Drilling Tapping Milling Compound Machine for Thread Faucet  I.Equipment description and pictures1.The manual machine tool consists of a base, a column, a lifting table, a middle drag, a worktable, and a spindle unit.2. PLC control program control, friendly human-machine interface dialogue, intuitive programming and easy operation, ordinary people can quickly learn.3.Sliding table double-spindle manual feed unit, Korea imported pneumatic components transmission table. The worktable adopts pneumatic device and hydraulic buffer for positioning, moving and high positioning accuracy. Eliminates the problem of partial tooth failure of old-fashioned equipment.4.The worktable is high-frequency treated, wear-resistant, high-temperature resistant, and equipped with a lubrication system.5.It is used in the processing of valves, plumbing and sanitary ware, door control hardware, fire hydrants, auto parts, etc. It is easy to operate, beautiful in appearance and cost-effective.II.Technical ParameterNo.NameZSK4132X2AZSK4150X21X-axis max travel(pneumatic)160mm240mm2X-axis maximum travel (screw)//3Y-axis maximum travel (manual)120mm120mm4Y-axis maximum travel (screw)//5Max stroke of drilling spindle100mm140mm6Max stroke of tapping spindle90mm100mm7Spindle spacing150mm240mm8Spindle sleeve dia//9Distance from spindle end face to work table160/480mm240/580mm10Spindle taper//11Max drilling diaΦ32Φ5012Max tapping diaΦ32Φ5013Z2, Z1 axis speed0-1400r/min0-1400r/min14Spindle motor power3kW/4P3kW/4P15Dimension:L*W*H1180*900*1800mm1180*900*1800mm16Net weight1300KG1300KGIII.Production workshopIV.CertificateQuanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on. If you have any interest, pls feel free to contact at any time./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
