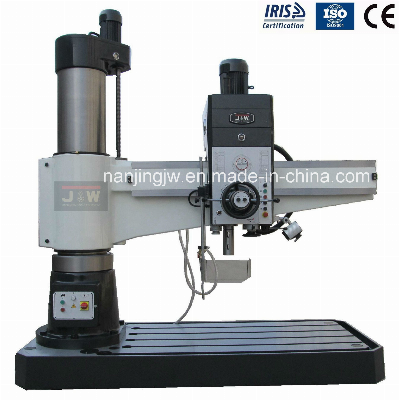

(CNC) Hydraulic Radial Drilling Machine Vertical Driller (Z3050/Z3063/Z3080/Z30100/Z30125)

  FEATURES:The radial drilling machine model Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.  SPECIFICATIONS:Z3050X16Z3063X20Z3080X25Z30100X31Z30100X40Z30125X40Max. drilling diameter:50mm63mm80mm100mm100mm125mmDistance between spindle axis and column:350~1600mm450~2000mm500~2500mm560~3150mm560~4000mm600~4000mmDistance between spindle end and working surface of base plate:320~1220mm400~1600mm550~2000mm700~2500mm700~2500mm700~2500mmhorizontal movement of spindle box 1250mm1600mm2000mm2590mm3440mm3440mmWork table size630 x 500 x 500mm 800 x 630 x 500mm1000 x 800 x 560mm1250 x 800 x 560mm1250 x 800 x 560mm1250 x 800 x 560mmTaper in spindle:No.5No.5No.6No.6No.6No.6Spindle travel:315mm400mm450mm500mm500mm560mmNumber of Spindle Speeds:16Range of Spindle Speeds:25-2000r/min20-1600r/min16-1250r/min8-1000r/min8-1000r/min6.3-800r/minNumber of Spindle Feeds:16Range of Spindle Feeds:0.04 -3.2mm /r0.06 -3.2mm /rPower of main drive motor:4 kw5.5kw7.5kw15kw15kw18.5kwWeightN.W3500kg7000kg11000kg20000kg22000kg30000kgG.W3850kg8000kg13000kg21500kg23500kg31500kgOverall dimensions(L x W x H)250 x 107 x 284cm308 x 125 x 340cm373 x 140 x 402cm   Packing dimension(L x W x H)258X110X 255cm321X156X 226cmPAC1:4000x1620x2240mmPAC2:3800x1650x1700mmPAC1:4670x1870x1670mm PAC2:4795x1680x2580mmPAC1:5570x1870x1670mm  PAC2:5595x1680x2580mmPAC1:6110x1610x2800mm   PAC2:5500x2280x2080mm   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
