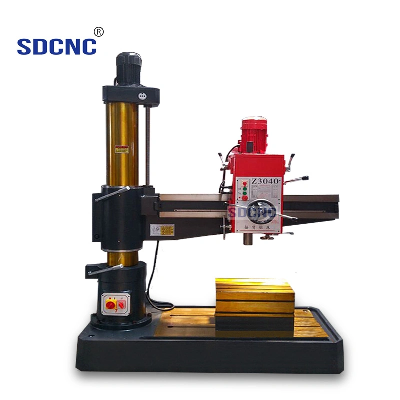

Radial Drilling Machine Z3040 Vertical Drilling Machine

                                                         Radial drilling machine Z3040 vertical drilling machine   Product DescriptionFunctions: Drilling, counter boring, reaming, boring, spotting, tapping.Detailed PhotosProduct ParametersSPECIFICATIONSUnitsZ3040xllBMax. drilling dia.mm40Distance between spindle nose and table surfacemm170-1100Distance from spindle axis to column surfacemm330-1050Spindle travelmm250Spindle taper-MT4Spindle speed rangerpm75-1200Spindle speed steps-6Spindle feed rangemm/r0.10-0.25Spindle feed steps-3Main motor powerkw2.2Lifting motor powerkw0.75Machine weightkg1600Overall dimensionmm1500*705*2200FAQ our service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can    help you to work it  out./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
