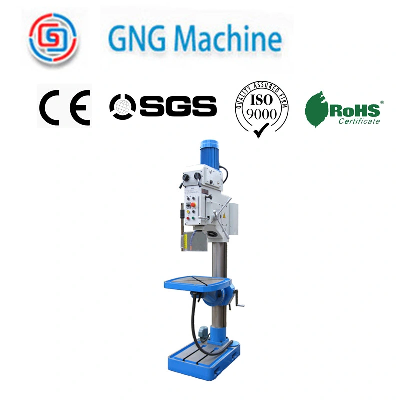

Min. Order Quantity: 10 Set/Sets Supply Ability: 300 Set/Sets per Month Port: Qingdao/Shanghai Payment Terms: T/T Quick Details Condition: New CNC or Not: Normal Drilling Speed: 50-1450rpm Place of Origin: Shandong, China (Mainland) Brand Name: GNG Model Number: ZS5040 Voltage: 380V Power(W): 1500W Dimension(L*W*H): 2270X690X1100mm Weight: 465kgs Certification: CE After-sales Service Provided: No overseas service provided Packaging & Delivery Packaging Details: 2270X690X1100mm 465/615kg Delivery Detail: 30-45days Specifications2 speed strong power motor Automatic tools ejectors 2 steps power feed 0.1-0.2mm/rev Drilling, tapping Electric gear head drilling machine model Z5040 Specifications: Z5040(machinery power feed)/Z5040E(electronic power feed) 1. Max. Drilling capacity: 40mm 2. Threading in steel& cast iron: M20&M24 3. Spindle travel: 180mm 4. Spindle taper: MT#4 5. Spindle power feed: 2steps/0.1-0.2mm/rev 6. Spindle speed: 50-1450rpm 7. Width of T-slot: 18mm 8. Max. Distance from spindle axis to surface of column: 350mm 9. Max. Distance from spindle end to surface of table: 770mm 10. Max. Distance from spindle end to surface of bace: 1210mm 11. Table size: 560X560mm 12. Base size: 730X500mm 13. Motor power: 0.75/1.5KW 14. NW/GW: 465/615kg 15. Packing size: 2270X690X1100mm Feature: 2 speed strong power motor Automatic tools ejectors 2 steps power feed 0.1-0.2mm/rev Drilling, tapping ITEMZ5040Max.drilling capacity40mmSpindle taperM.T.4Spindle travel130mmStep of spindle speed6Range of spindle speed 50Hz80-1250 r.p.m 60Hz 95-1500 r.p.mMin.distance from spindle axis to column283mmMax.distance from spindle nose to worktable725mmMax.distance from spindle nose to stand table1125mmMax.travel of headstock250mmSwivel angle of headstock(horizontal/perpendicular)360°/±90° Max.travel of worktable bracket600mmWorktable size of avaliablity380×300mm Swivel angle of table horizontally360° Table leaned±45° Size of stand worktable of avaliability417×416mm Motor Power1.1KW(1.5HP)speed of motor1400 r.p.mNet weight/Gross weight432kg/482kgPacking size1850×750×1000mm /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
