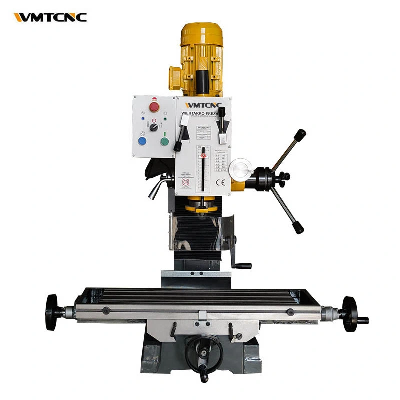

Product DescriptionMilling and drilling machine main features:1. Milling drilling, tapping boring, reaming;2. Head swivels ±90° verticaly;3. Spindle micro feed precisely;4. Adjustable gibs on table precision;5. Accurate position, strong rigidity, powerful cutting Gear-driven type and square column.SpecificationZAY7045FGZAY7045FG/1Drilling capacityΦ45mmΦ45mmFace milling capacityΦ80mmΦ80mmEnd milling capacityΦ32mmΦ32mmDistance from spindle nose to table450mm450mmMin.distance from spindle axis to column260mm260mmSpindle travel130mm130mmSpindle taperMT3 MT4 or R8MT3 MT4 or R8Auto-feeding Step of spindle/6 stepsAuto-feeding amount of spindle/0.06-0.30mm/rRange of spindle speed 50Hz80-1250 r.p.m80-1250 r.p.m60Hz95-1500 r.p.m95-1500 r.p.mSwivel angle of headstock (vertical)±45°±45°Table size800×240mm800×240mmForward and backward travel of table175mm175mmLeft and right travel of table500mm500mmMotor Power1.5kw (2HP)1.5kw (2HP)N.W/G.W320/370kgs320/370kgsPacking size770×880×1160mm770×880×1160mmDetailed ImagesCompany ProfileProfessional ServiceFAQQ1: How is the warranty?A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: How about your quality?A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?A7: Yes, we can design and manufacture according to your specific requirements. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
