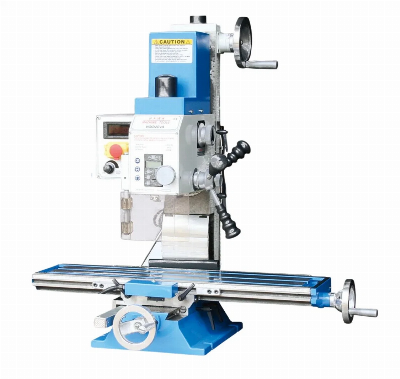

Product Description Mini Vertical Vario Milling and Drilling Machine20Description Gear head and square columPrecision ground worktableTilting and swiveling headWith Mirco-feed hand wheel and lever down feedAdjustble gibs on tableAdjustable stops on table Accurate position ,strong rigidity,strong cutting powerGear drive ,lower noise Standard Accessories: · Speed display · Depth ruler· Arbor MT2/B16,M10 · Drill chuck 3-16mm· Operating toolsOptional Accessories:· ER25/6PCS collet chuck (4-16mm)· End mill 7pcs (4-16mm)· 58pcs of clamping kits/M10X11.7mm· Keyless Drill chuck 3-16mm· Stand&chip tray · Digital Readout · X-axis power feed Product Parameters SpecificationW20 VarioW20L VarioDrilling capacityΦ20mmΦ20mmMax. end milling capacityΦ20mmΦ20mmFace milling capacity63mm63mmWorking table size500×180mm700×180mmSpindle rotary angle±45°±45°Spindle taperMT2MT2Spindle speed50-2250rpm50-2250rpmX-axis travel 280mm480mmY-axis travel 175mm175mmZ-axis travel 270mm270mmT-Slot12mm12mmMotor power750w750wN.W/G.W110/135kgs122/147kgsPacking size 670×550×860mm870×550×860mm Detailed Photos FAQ1: How can I choose the most suitable machines? A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you. 2: What's your main products of your company? A: We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine,shears and so on. 3: Where is our factory located? How can I visit there? A: Our factory is located in Yangzhou City, Jiangsu Province, China. You are warmly welcomed to visit us. 4. What is your trade terms? A: FOB, CFR and CIF all acceptable. 5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight. 5: What's the MOQ? A: 1 set. (Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
