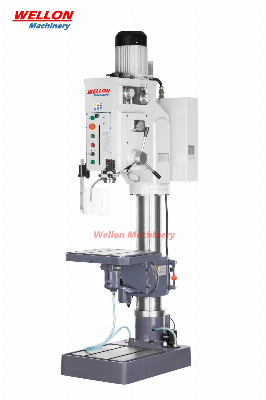

Vertical Drilling Machine Price (Z5050 Column Drill Press Machine)

Products Description:Performence Features:The machine is designed with multi-function of drilling. Broaching, reaming, tapping and facing milling. With a strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size. It is suitable for using in both production and maintenance shops1. Easy operation. 2. Casting iron structure for long durability. 3. Column type of vertical drilling machine.4. Worktable can rotate 180 degree and tilt 45 degree5.Worktable lifting both manual and motorized.Technical parameter:ModelZ5050Max. drilling capacity(mm)50Max. taping capacity(mm)M30Distance from spindle to column(mm)360Max. distance from spindle to work table(mm)570Max. distance from spindle to base(mm)1160Max. spindle travel(mm)240Max. travel of work table(mm)550Swivel angle of table±45Tilting angle of table±180Spindle bore taperMT4 or MT5Spindle steps12Spindle speed(r/min)42-1685Spindle feed steps4Spindle feed range(mm/r)0.07,0.15,0.26,0.4Column diameter180Effective area of table(mm)550x470Effective area of base(mm)450x440Main motor power (kw)2.2/2.8Coolant motor power(kw)0.04Packing size(cm)108x62x245N.W./G.W.(kg)1045/985Standard accessories:Coolant systemWork lampDrill chuckReduction sleeveWorktable lifting deviceWrenchesOptional accessories:Machine viseSpindle guardDepth indicatorCompany Information:Contact Us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
