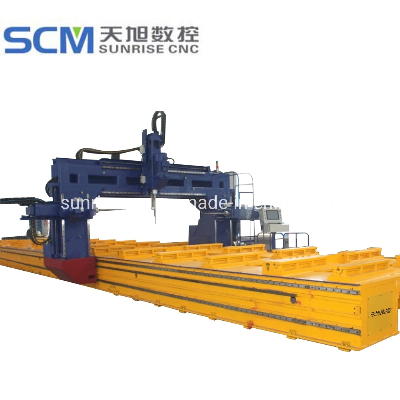

Tbd200/3 CNC Gantry Movable Drilling Machine for Beams

MACHINE MAIN CHARACTERReduced setup time & simple to operate;Sturdy frame, no vibrations and noiseless;Circle-Controlled system to measure accurately;Specialized for large-section beam drilling.Layout marking function easy for welding.Autocad, X-STEEL & Tekla file reading instead of manual input.TBD2010 SPECIFICATIONSOperating RangeH-Beam1000 x 400 mm ~ 2000 x 1000 mmChannel1000 x 400 mm ~ 2000 x 1000 mmBox-Beam & Column Beam1000 x 400 mm ~ 2000 x 1000 mmMax. Length of  Workpiece12,000 mm Max. Loading Capacity3 tons/m, total 35 Tons/whole worktableDrilling UnitNo. of Drilling Spindle3 (Left + Right + Top)Drilling DiameterΦ12.5 ~ Φ50 mmThread Tapping4#Motor Power of Drilling Spindle5.5 kW x 3Spindle Feeding StokeY1 axis: 1000mm; A axis: 600mm (horizontal)Y2 axis: 1000mm; B axis: 600mm (horizontal)Z axis: 2000mm; C axis: 600mm (vertical)Spindle Y & Z movementYesFeedCNC feeding; 0 ~10 m/min (vertical to H-beam)Drilling Tools & Tool Lube ModelCoated Drill Bit with mist spray coolingOrCarbide Drill Bit with inner coolingSpindle rpm (servo)Stepless120~560 rpmProfile Height MeasuringIncludedProfile Width MeasuringIncludedLayout Point Marking (not drilling through)Available (for welding purpose)Gantry SystemMoving Speed0 ~ 10m/minDrive ModelDouble side servo + GearStructureSquare Pipe + Plate; HF weldedControl SystemTypeComputer + Mitsubishi PLC + ModulesImporting SoftwareAUTOCAD (*.dxf), TEKLA, X-STEEL (*.nc1, dstv)Manual ProgrammingAvailableHydraulic System (for tool changing & side push aligning)Hydraulic Motor Power5.5 kWSystem Inner Working Pressure75 barFlux40 L/min.Hydraulic Tank Content140 LHydraulic oil N0.#46Scraps Removal SystemMotor Power1.5 kWTypeChain & Plate recycling moving typeSpeed10/minNo. of scraps removal system2setsMachine overall infoDimension (L x W x H)L 17000mm x W 8600mm x H 4620mmTotal WeightAround 50 TonsTotal Power40 kWWORKING PROCEDUREThe structure profile is lifted on the worktable by overhead crane. The operator press the side aligning button to enable the hydraulic side push function to align the beam to setup home position.  The Gantry moves from end of the Beam to detect the starting point. The operator send the drawings (*.dxf, *.nc1) to the machine and transfer to machine language automatically. And then, press the start button.The Gantry moves to the right position and stop ready for drillingThe operator presses the tool removal button to loose the tool holder for drilling bit changing.The operator presses the start button to re-start the machine for drilling till all job being finished.The Gantry will move to a safe area for unloading the Beam (by overhead crane)LIST OF KEY PARTSNo.NameCodeManufacturerMain electric components 1PLC Japan Mitsubishi / Omron2Servo motor1.8KWJapan Yaskawa3Servo Driver1.8KW4Servo motor1.3KW5Servo Driver1.3KW6Servo motor0.85KW7Servo Driver0.85KW8Spindle motor5.5KwJapan9Transducer5.5KwGermany10Low-voltage apparatusSiemensGermany11ComputerLCDLenovo, China12Sensor / Switch AutonicsMain hydraulic components1Electromagnetic Valve ATOS, ItalyMain mechanical components1Ball screwallTaiwan HIWIN or Taiwan PMI2Linear guideallTaiwan HIWIN or Taiwan PMI/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
