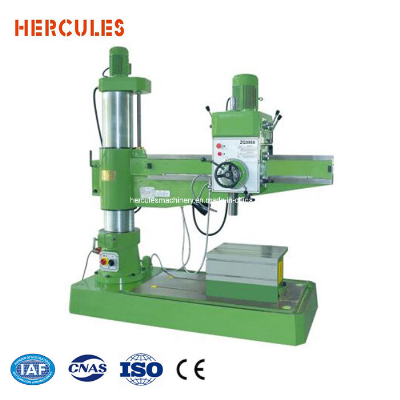

Z3050X16 Taladro Radial Drilling Press Tapping Cutting machine

Advantage1. With a wide range of speed and feed, with manualpower and fine feeds. 2. The feed of machines are very easily engaged and disengaged at any time. 3. All parts are easily operated and changed. 4. High quality of casting. 5. Heat treatment for spindle parts, ensuring their high strength and durability. 6. Main gears are machined by gear grinding, ensuring the machine with high precision and low noise.   ModelZ3050x16/Z3050x14 Fladial drilling machineMax. drilling diaΦ50Distance from spindle nose to table surface260-1050/260-1150Distance between spindle axis and column surface360-1600/360-1400Spindle travel220Spindle cone5Spindle speed range78. 135. 240.350. 590. 1100Spindle speed step6Spindle feeding range0.10-0.56Spindle feeding step3/6Rocker rotary angle360Main motor power4Movements motor power1.5N.W/G.W2800/2400Overall  dimension2170x950x2450/1950x810x2450Hercules Machinery Equipment Ltd.Pictures for reference only: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
