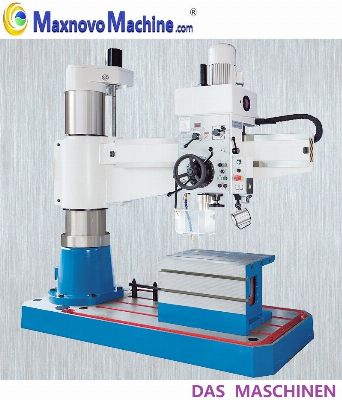

Universal R60V Hydraulic Radial Arm Drilling Machine

MM-R60V - Universal Hydraulic Radial Arm Drilling Machine - MAXNOVO MACHINEThis kind of MM-R60V is Variable Speed Heavy Duty Hydraulic Radial Drilling Machine with max. drilling capacity in steel up-to 62 mm which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such high precision radial drill press feature step-less speed adjustment, solid construction and high user friendliness. The column us mounted to improve the position of the radial arm and therefore maximize work comfort-significant for longer operating times. This drilling machine is proven performance, quality, and cost-effectiveness which is ideal for drilling, countersinking, reaming and tapping.   Product Description Variable Speed, Hydraulic Heavy Duty 62mm Frequency Conversion Radial Drilling Machine - Perfect in every detail, powerful, rigid and easy to handle Main  Feature :   Convincing Arguments: Quality, Efficiency and Price  --Max. drilling capacity in steel up-to 62 mm --Radial arm, drill head and column each with hydraulic clamp --Complete with variable speed, set speed is visible on digital display --Base, column, boom and gear head are made of premium high-quality cast --Torsion-free, polished column increases sliding capacity of radial arm --Major design features include a large column and a highly torsion-resistant boom --Boom height adjustment via a powerful motorized drive and vertical spindle --Spindle features high concentricity and automatic spindle brake --Counter weight on spindle to ensure optimal balance --The boom lifting gears run in an oil-bath for maximum reliability and minimum wear--Swivel axis and travel axis feature extremely smooth operation to make the    Operator everyday production work easier --Large base plate good for processing of oversize work-pieces --The gears feature hardened and precision-ground chrome-nickel steel gears for    smooth and low-noise operation --Infinitely variable spindle speed and easy to read digital display --All gear parts are lubricated reliably via oil pump --Guiderail on radial arm are hardened and polished --Ideal for drilling, countersinking, reaming and tapping --Advanced column swivel design with optimized clamping features maximum rigidity   and minimum clamping offset --Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position -better    for repetitive operations --The main spindle runs on precision bearings and features an Automatic Spindle Brake --Certificate of Original ( CO, FORM A, FORM E, FORM F )   Product Parameters Technical Data :    Product  Name :Heavy Duty Hydraulic Radial Drilling Machine Product  Item :MM-R60V Max. Drilling Capacity  (in steel) : Ø 62 mm Max. Tapping Capacity  (in cast iron) : M 52 Max. Tapping Capacity  (in steel) : M 46 Max. Drilling Depth : 315 mm Clamping Type : Hydraulic Working  Area Machine Table Dimensions : 2400 X 1000 X 200 mm Cube Table Dimensions : 750 X 500 X 500 mm Throat  (distance spindle-to-column) : 350-1600 mm Spindle nose-to-table surface distance :350-1250 mm Drill  Head Travel  (horizontal) : 1250 mm Arm  Stroke       (vertical) :  585 mm Column  Diameter : Ø 350 mmHeadstock Spindle  Speed  Range : 38-2000 RPM Spindle  Speed  Steps : Variable Speed Spindle  Mount : MT5 Feed Spindle  Feed  Range : 0.06-1 mm / Rev Spindle  Feed  Steps : 8 steps Drive  Capacity Main  Motor : 4000 W     (Variable Frequency Motor) Stroke  Motor : 1500 W Hydraulic Clamp Motor : 750 WRocker Arm Move Speed up and down :1200 mm /min Drill Depth of Each Round of Dial : 122 mm Rotation Angle of Radial Arm :  ±180 degree Connecting Voltage : Three Phase 400V Voltage Measures and Weights  Machine Dimensions :2490 X 1050 X 2780 mm ( Length X Width X Height )Packing  Size : 2600 X 1100 X 2500 mm ( Length X Width X Height )Gross  Weight : 7000 KGS Standard Accessory : Frequency Inverter Main Motor, Hydraulic Motor, Stroke Motor, Coolant system, Cube Table , Digital Readout of Speeds, Work Lamp, Tools and Toolbox    Our Advantages  Guarantee of Quality  The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.   Well trained quality control department is the first contact for adhering to quality on site.They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.A team of quality control engineers directly influences the production process on site by regular training courses and tests.What is more, they are closing working together with the technical department in the factory.Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE.The Metal Scraper Craftsmanship i
