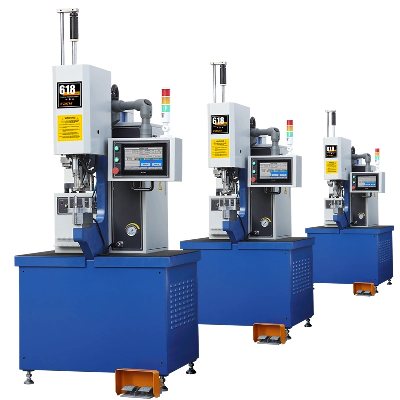

Product Feature- 6 ton (57KN)ram force , 18 inch(457mm) throat depth. - Reliability/energy efficiency of a fully hydraulic machine.- The ram force residence time is adjustable for processing high hardness materials.- The ram return stroke is adjustable, and working pressure can be applied at any stroke point.- Forward Limited- Automatic Set pressure and Fast Programming- Lazer locating light(optional)- J-Frame(optional)- Turret Insertion System- MSTP-33(optional)- Modular autofeed system(optional) Product ParametersProduct nameFastener insertion machineMax riveting capacityM10 NUT M8 standoff M6 stud carbon steelModel618MSPeForce450LBS.(2KN) TO 12000LBS.( 57KN )Throat depth450MMThroat lengh400MMStroke lengh200MMMain power1.5kwCurrent4AHydraulic oil46#/32#Oil tank reawevoir60LAir press0.4-0.7MpaPower supply380V 3phase 50/60HZ 5 coreDimension(L*W*H)41*37*78(1060MM*960MM*2000MM)Weight650KGFAQ1. Can 4 different types of locks be automatically fed on the same equipment?The Inserter brand can realize the automatic feeding of 4 different types of fasteners on the same equipment.2. What should I do if I do not want to reset the pressure by pressing screws and nuts of different specifications?The MSP type riveting machine of the ERSM brand can be selected, which can be achieved by setting a certain program without having to reset the pressure every time3:There is no pressure when the upper die comes down during riveting. What is the reason?1. There is oil on the installed mold, just sand it with sandpaper 2. The 24V relay of the electric control box is not working properly, all the 24V relays are unplugged and confused and plugged in again4. why should you buy from us not from other suppliers?RS MACHINERY CO.LTD is an enterprise specializing in Resource Sheet Metal Joint solution.Specializing in Inserting, Clinching, Punching, Riveting, Spot welding, tapping , assembling and all kinds of rivet & welding fasteners.5. Is there CE certification?Yes,we have/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
