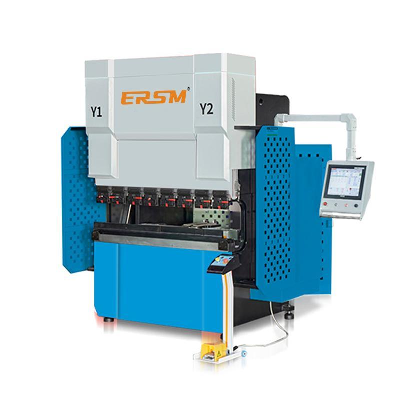

High Accuracy Bending Length 1600mm Full Servo Electric CNC Press Brake

Product Features· Y1/Y2 axis adopts grating scale or magnetic grating scale feedback full-closed loop control mode, precise positioning control, repeat positioning accuracy of ±5μm· Intelligent safety light curtain monitoring ensures operator safety· Smart tool load monitoring ensures tool safety· Five-wire touch screen, high reliability with a service life of more than 10 million times, and the operation process is simple and fast.·Bending pressure automatic calculation function, alarm prompt when the pressure exceeds the limit range· "Direct" calculation of back gauge position· Angle intelligent compensation function: According to sheet metal material characteristics, die size, material thickness, bending angle and other sheet metal process parameters, combined with the angle calculation model of the CNC system, any sheet metal only needs one trial break· Arc continuous bending function· Die parameter library: establish a mold parameter library for customers, which is convenient for customers to quickly call parameters for sheet metal bending· Password protection function· All-electric servo CNC bending machine, power saving and green environmental protectionProduct ParameterModelIS-4016IS-6025IS-10032Bending Force400KN600KN1000KNBending Length1600mm2500mm3200mmMotor Spacing1250mm2000mm2800mmThroat Depth410mmOpening Height470mmSlider Tilt±30mmSpeedY Axis Fast Approach Speed220mm/s200mm/s180mm/sY Axis Bending Speed50mm/sY Axis Return Speed220mm/s200mm/s180mm/sX Axis Fast Approach Speed500mm/sR Axis Fast Approach Speed200mm/sZ1/Z2 Axis Fast Approach Speed400mm/sRepeat Positioning AccuracyY Axis±0.01mmX Axis±0.02mmR Axis±0.1mmZ1/Z2 Axis±0.1mmStrokeY Axis200mmX Axis500mm600mm600mmR Axis200mmZ1/Z2 Axis800mm1800mm2500mmSize2400×1388×2439mm2900×1388×2439mm3600×1722×2664mmWeight3500kg5300kg7800kgFAQ1. Who are we? A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office. 2.Which payment terms you can accept?A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation. 3.Which shipping way can you provide?A: We can provide shipping by sea, by air, by express and etc according to customer requirements. 4.How to place order? A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly. 5. Do you have an inspection procedure for the product?A: Yes, We have a strict inspection of product quality and packing./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
