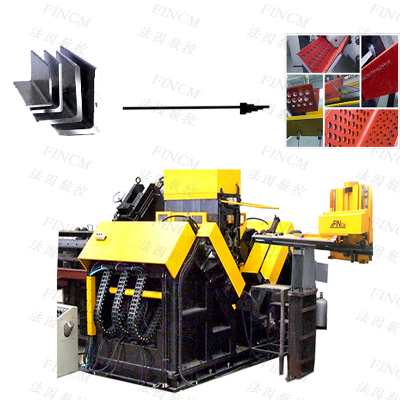

Product DescriptionADM3635 FINCM CNC High-Speed Angle Steel Drillling Markling Shearing Machine 140mm×140mm×10mm~360mm×360mm×35mm Applicable Industry: The machine is the special equipment used for angle steel drilling marking &shearing mainly in the field of angle steel tower industry.Technical Specification: Angle size(mm): 140×140×10 ~ 360×360×35Range of stadia(mm): 50 ~ 330(stepless)The quantity of drilling cow per side: arbitrarinessQuantity of drilling spindle per side: 3Range of drilling diameter(hard metal)(mm): φ17.5 ~ φ40Motor power of drilling spindle (KW): 2×7.5Rotation speed of spindle(r/min): 180 ~ 3000(stepless adjustment)Spindle feeding speed(m/min): 0~ 10Quantity of CNC axis: 9Max length of workpiece (m): 12Angle feeding speed (m/min): 40Quantity of character group: 1 groupSpindle taper: BT40Nominal marking force: 1200KNThe finished angle conveyor is rotated to one side by pneumatic power, the max length of finished angle is12m.There are four sets of transverse conveyor, infeeding automatically and intermittently.Type of programming: keyboard input, USB interface input, floppy disc input.Layout: A or BWorking environment: Working temperature: 0ºC~ 40ºCPower: Three phase four wire systemsAC Voltage: 380VFluctuation of voltage: ±10%Frequency: 50 Hz ±1 1.The are three groups of drilling spindles on each side of drilling unit,which can install three kinds of drills with diffirent diameter .Each side of drilling spindles can move altogether by CNC to change the drilling stadia . 2.CNC drilling head sdopt two linear guides to derecting,driven by AC servo motot and precision ball screw.It adopt the precision spindle (inner water cooling ),with butterfiy spring automatic and hydraulic cylinder to loosen the knife;It"s very convenient to replace the shank.. 3.The marking unit adopt closed frame with stronger rigidity .marking stadia can bi ser at will. 4.CNC feeding trolly is drive by AC servo motor .The photoelectric encorder feeds back the information.Closed loop control to ensure positioning accuracy. 5.Hydraulic system is used to complete clamping workpiece crimping of drilling spindles ,hydraulic balance of drilling head and marking. 6.The control system consists of a host computer ,CNC system,servo motor,PLC and detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated; Company Profile Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year. FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients. Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance. The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.Cooprative SupplierProduct Process ControlCustomer PraiseSales NetworkOur Service FAQ 1. When can you arrange shipment? For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C; For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.2. What can you do if my machines have problems? 1) We can send you free components if machines are in warra
