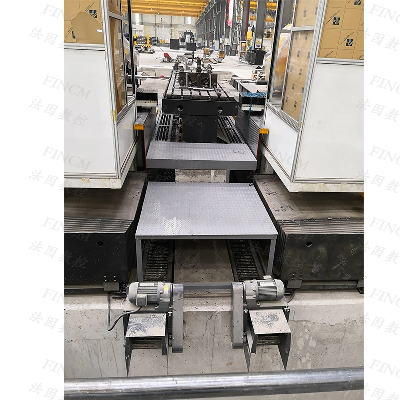

RD90A FINCM Railway Track Rail Frog Railway Rail CNC Hydraulic Drilling Machine

RD90A FINCM RD90A FINCM Railway Track Rail Frog Railway Rail Frog the Waist Hole CNC Hydraulic Drilling MachineProduct DescriptionThis machine is mainly used for drilling the waist holes of railway rail frogs. Carbide drills are used for high-speed drilling. When drilling, the two drilling heads can work simultaneously or independently. The machining process is numerically controlled, which can realize automation and high Precision production.Main Technical Specifications:Parameter NameProjectParameter ValueWorkbenchLength×width10000×1000mmT-slot width28mmSpacing and number of longitudinal T-slots140mm, 7 pcsTransverse T-slot spacing and number600mm, 17 pcsDrilling power headQuantity2 pcsSpindle taperBT50Maximum drilling diameter50mmMaximum drilling depth160mmSpindle speed (frequency conversion stepless)50~2500r/minSpindle torque288/350 N.mSpindle motor power2×18.5kWMinimum distance from spindle center line to work surface150mmLongitudinal movement of power head(X axis)Maximum stroke9200mmX axis moving speed0~6m/minMotor Power2×3.1kWPower head moves up and down(Y axis)Maximum stroke100mmY axis moving speed0~4m/minMotor Power2×1.9kWLateral movement of power head(Z axis)Maximum stroke600mmZ axis moving speed0~4m/minMotor Power2×1.9kWRotary movement of the turntable (W axis)Rotation angle±15°Motor Power2×1.5kWCompressed airPressure0.5 MpaFlow0.2 m3/minCooling systemCoolant cooling1 setCooling methodInternal coolingMaximum pressure of coolant2 MPaPositioning accuracyX axis0.15mmY axis0.05mmZ axis0.05mmWork Environment:1).Power supply:  3 phase 4 lines     380±10%V    50±1HZ2).Compressed air pressure:       ≥0.5MPa3).Temperature:                 0-40°C4).Humidity:                     ≤75%Company ProfileShandong FIN CNC MACHINE CO., LTD is always focusing on our ultimate goal-to secure and increase our customer's productivity-has made us the leader in China market in the manufacture of machines for processing angle bar,beam channel profiles,steel plates,tube sheet and flanges,mainly serving for fabricating iron towers,steel structure, heat exchange,boilers,bridges,and trucks.Strong R & D center with 30 engineers team,24 years of experience from year 1997,280 staff,plant area about 270,000 square,very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.Cooperatine SupplierProduct Process ControlSales NetworkOur Service FAQ:1. When can you arrange shipment?    For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;    For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.2. What can you do if my machines have problems?    1) We can send you free components if machines are in warranty period;    2) 24 hours service on line;    3) We can assign our engineers to serve you if you want.3. Do you provide machine operation training?    Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.4. Which machine model shall I choose when I purchase from you?    Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.5. What's your machine's market share in China?    Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
