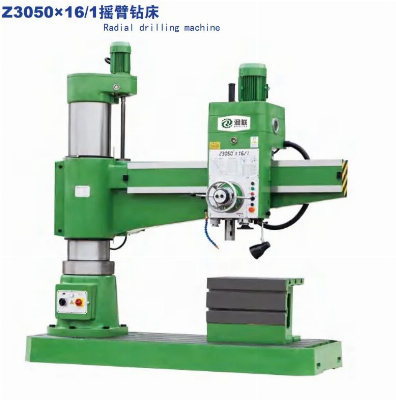

Z3032 Vertical Rocker Drilling Machine Automatic Lifting Radial Drilling Machine

Product DescriptionThe main function(1) The radial arm drill is suitable for drilling, reaming, reaming, countersinking, and tapping on medium and large metal parts. The main functions of the hydraulic radial arm drill are the handles, buttons and other operating components that are concentrated in the headstock. superior.(2) The outer column drives the rocker arm to rotate around the inner column ±180º;(3) The rocker arm rises and falls along the outer column; Detailed PhotosSpecificationsUnitsZ3080×25Z3063×20/1Max. drilling diametermm8063Distance between spindle axis and columnmm500-2500450-2000Distance spindle nose and working surface of basemm550-2000400-1600Spindle travelmm450400Spindle taperMorse No.6#5#Range of spindle speedsrpm16-125020-2000Number of spindle speedsstep1616Range of spindle feedsmm/r0.04-3.200.04-3.20Number of spindle feedsstep1616Table sizemm1000×800800×630Distance of headstock horizontal movementmm20001600Spindle motor powerKW7.55.5Machine weightKg110007000Overall dimensionmm3730×1400×40253080×1250×3400InstructionsRadial drilling machine is a kind of general-purpose drilling equipment, which has the characteristics of wide range of use, flexible and convenient operation, etc. How does radial drilling machine drill holes on general workpieces.1. Draw a line on the workpiece according to the requirements of the drawing, and punch the hole after inspection. The sample punching hole should be made larger so that the drill bit is not easy to deviate from the center.2. Adjust the required speed and feed rate, and prepare the required cutting fluid.3. According to the material characteristics and process requirements, sharpen the cutting angle of the drill bit.4. Align the drill tip with the center of the drill hole. When setting the knife, observe from two vertical directions.5. If the drilling is deviated, it must be corrected in time. The method of correction is: use oil groove chisel to chisel several grooves on the opposite side of the hole deviation for larger holes, and use sample punching for smaller holes. Drilling small holes can also be raised with horns in the direction of deflection. Then try drilling until the round dimple is corrected, remove the pad iron, and continue drilling.6. When drilling through holes, it is best to switch to manual feeding when drilling through quickly.7. If the hole cannot be drilled, the automatic feed stopper can be adjusted according to the hole depth before drilling.8. When drilling deep holes, when the hole depth reaches more than 3 times the diameter, the drill bit must be withdrawn several times to remove chips.9. When the drilling diameter is less than 35mm, it can be drilled at one time, and when it is larger than 35mm, it can be drilled twice. At this time, the diameter of the pre-drilled hole is 0.7 times the machining diameter.Related productsCompany ProfileWeifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprise, metal cutting machine tools, metal cutting tools, Grinder abrasives, measuring tools, machine tool functional parts, numerical control devices, metal forming machine tools, lubricate grease and oil Machine function parts, numerical control devices (CNC), Metal forming machine, mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
